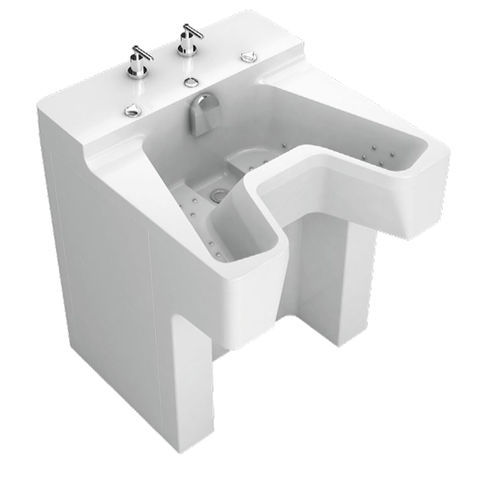

Upper limb hydromassage bathtub AQ-51

Drain for mud Ø 50 mm Drain for water Ø 50 mm Hot water (¾" stopcock max. 16 cm high from the floor) Cold water (¾" stopcock max. 16 cm high from the floor) Supply wire cable (1 m long) Additional earthing wire cable (1 m long) Mineral water (¾" stopcock max. 16 cm high from the floor) TECHNICAL DATA 1. WATER PRESSURE IN THE SYSTEM OF UNDERWATER SHOWER MASSAGE DEVICE Nozzle 7 mm .............................. 0–0,135 MPa Nozzle 9 mm .............................. 0–0,125 MPa Nozzle 11 mm ............................... 0–0,115 MPa 2. TIME FOR FILLING THE BATH In the case of water pressure in the supplying system about 0,35 MPa and hot and cold water connections ¾" – approximately 30 seconds. 3. TIME FOR DRAINING THE BATH In the case of sanitation opening in the floor with Ø 50 mm and sanitation magistral pipe under the floor with Ø 50 mm – approximately 30 seconds. 4. MEASURES FOR CONNECTIONS OF HOT AND COLD WATER – ¾". 5. MEASURES FOR CONNECTIONS OF MINERAL-, SEA- AND IODINE-BROMINE WATER – ¾". 6. MEASURE FOR WATER DRAIN CONNECTION – Ø 50 mm. 7. MEASURE FOR MUD DRAIN CONNECTION – Ø 50 mm.
