Cooling storage chamber FieldClima

with humidifiertemperature-controlhigh-capacity

Overview

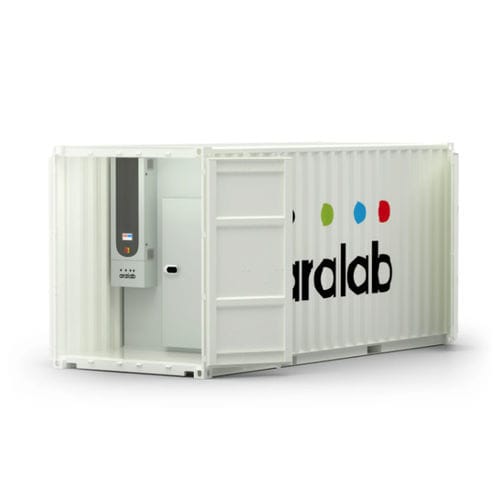

FieldClima Stability container rooms provide mobile, self-contained walk-in stability capacity built into reinforced 20 ft and 40 ft ISO containers. They deliver stability-grade temperature and humidity control suitable for regulated studies, testing and long-term storage where conventional built-in rooms are not practical.

Application summary
Pre-configured with high-capacity shelving and an adaptive interior layout, FieldClima Stability units offer up to 40 000 L (40 m³) usable volume for stability studies, product testing or secure storage of sensitive materials. Systems include alarm management, remote notifications and full electronic records to support GxP and other regulated environments.

Benefits
FieldClima Stability units are ready for plug-and-play installation indoors or outdoors, providing rapid additional climate-controlled capacity without structural modifications. They suit sites with limited internal space or projects requiring temporary, relocatable stability facilities.

Key features

• Mobile walk-in stability rooms in 20 ft (~22 000 L) and 40 ft (~40 000 L) ISO containers, suitable for outdoor or indoor installation.
• Stability-grade climate control: temperature 15 °C to 45 °C and humidity 35 % to 90 % rH, with tight temporal fluctuation and spatial uniformity.
• High-efficiency modular aluminium shelving (5 tiers per module) included as standard; up to 150 kg evenly distributed per shelf.
• ClimaPlus controller and FitoLog data-logging software; alarms, remote notifications and IQ/OQ/PQ and ISO calibration options for GxP compliance.

Product Details
Interior volume: FieldClima Stability 22 PH — 22 000 L (22 m³)
Interior volume: FieldClima Stability 40 PH — 40 000 L (40 m³)
Approx. storage area: FieldClima 22 PH — 14 m²
Approx. storage area: FieldClima 40 PH — 21 m²
Temperature range: 15 °C to 45 °C (extensions available on request)
Temperature fluctuation (time): ± 0.5 °C
Temperature uniformity (space): ± 1.0 °C
Humidity range: 35 % to 90 % rH
Humidity fluctuation (time): ± 1 % rH
Humidity uniformity (space): ± 2.5 % rH
Shelves: modular anodised aluminium racks with polyethylene shelves, 5 tiers/module; additional tiers optional; max load 150 kg/shelf (evenly distributed).
Lighting: ceiling linear LED, switch/door-trigger/controller operation.
Airflow: dynamic airflow with adjustable velocity set-point via ClimaPlus controller for uniform conditions across shelves.
Construction: reinforced ISO container with marine epoxy coating; insulated inner chamber with 60 mm polyurethane panels; slip-resistant protected floor; insulated inner safety door.
Connections: 400 VAC, 50 Hz, 3-phase + N + PE; 3/4” demineralised water inlet; 50 mm floor drain; RJ45 Ethernet port.

Technical specifications

• Models/volumes: FieldClima Stability 22 PH (22 000 L / 22 m³); FieldClima Stability 40 PH (40 000 L / 40 m³).
• Storage area (approx.): 14 m² (22 PH); 21 m² (40 PH).
• Temperature: 15 °C — 45 °C; fluctuation ±0.5 °C; spatial uniformity ±1.0 °C.
• Relative humidity: 35 % — 90 % rH; fluctuation ±1 % rH; spatial uniformity ±2.5 % rH.
• Shelving: modular anodised aluminium racks, polyethylene shelves, 5 tiers/module, up to 150 kg/shelf (evenly distributed).
• Control & software: ClimaPlus controller; FitoLog data logging; alarms and remote notifications; IQ/OQ/PQ and ISO calibration options.
• Lighting & airflow: ceiling linear LED; dynamic airflow with adjustable velocity set-point.
• Construction & installation: insulated chamber with 60 mm polyurethane panels; reinforced ISO container with marine epoxy coating; slip-resistant floor; insulated inner safety door; ready for outdoor or indoor installation.
• Utilities & connections: 400 VAC, 50 Hz, 3-phase + N + PE; 3/4” demineralised water inlet; 50 mm floor drain; RJ45 Ethernet port.
