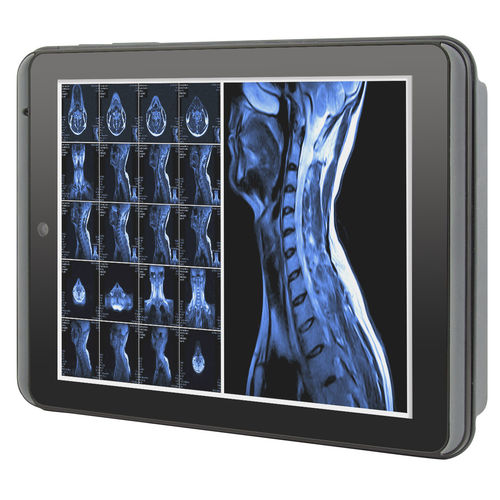

Intel® Atom™ medical tablet PC M0830

for emergency vehicleswith barcode scannermultitouch screen

eHealthcare and clinical assistant application TFT color LCD 1024 x 768 XGA resolution IPS LED display with projected capacitive multi-touch panel High mobility with connectivities including WLAN and Bluetooth Expansion for storage via microSD slot Identification devices (barcode scanner, RFID & NFC reader) IEC & EN 60601-1 Safety (Edition 3.1), IEC & EN 60601-1-2 EMC (Edition 4th) certificated Specification System Memory Built-in 2GB DDR3L-1600 Storage Built-in 64GB eMMC Audio 1 x integrated microphone 2 x 0.5W integrated stereo speaker 1 x 3.5mm headphone jack Peripherals and Devices Camera Front: 2.0 MP camera with fixed focus Rear: 8.0 MP camera with auto focus Sensor Gyroscope, eCompass, light sensor WLAN IEEE 802.11 a/b/g/n/ac Bluetooth - Bluetooth® 4.1 Barcode Scanner 1D/2D Barcode Scanner with physical trigger buttons on right & left sides NFC - ISO 14443A/B, ISO15693 (On back cover) Tablet I/O Interface USB Port 1 x Micro USB 2.0 port (OTG support) SD Slot 1 x microSD card slot LCD Display Resolution - 1024 x 768 (XGA) Luminance - 300 cd/m² (typ.) Contrast Ratio - 800 : 1 View Angle (U/D/R/L) - 89°/89°/89°/89° Cradle I/O Interface USB Port - 3 x USB 2.0 ports (supports USB 3.0 900mA current) LAN 1 x RJ-45 GbE LAN port Powe - 1 x DC Jack Docking Guide pin for fixing Mechanical & Environmental Operating Temp. - -10°C ~ 45°C (14°F ~ 113°F) Storage Temp. - -20 ~ 60°C (-4 ~ 140°F) Charging Temp. - 0°C ~ 40°C (32°F ~ 104°F) Dimensions (W x H x D) - 208.5 x 150.6 x 27 mm (8.21” x 5.93” x 1.06”) Cradle & docking: 208.5 x 169.6 x 99.3 mm (8.21” x 6.68” x 3.91”) Weight - Tablet: 520g (1.15lb) (with battery) Cradle: 450g (0.99lb)
