Multi-source vision scanning and positioning system

Product description

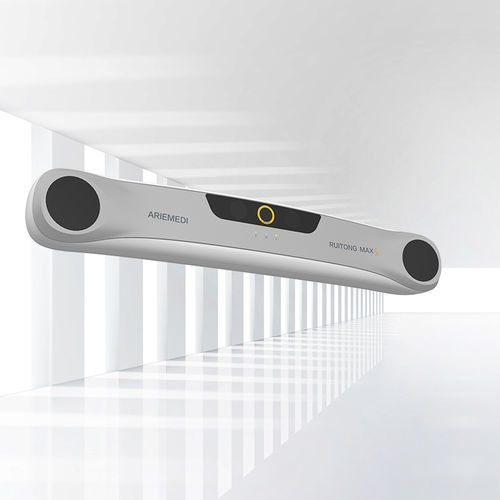

The RT-MAXS binocular stereo vision camera by 瑞瞳® is a high-frame-rate mid–long-range visual tracking system designed to capture precise pose information of target objects quickly and stably in complex environments. Through algorithmic optimization and increased hardware compute, RT-MAXS delivers tracking frame rates above 400 Hz and reduces latency to approximately 0.03 s, providing a high-frame-rate visual platform for medical, industrial and entertainment applications.

Innovative technology

• High frame-rate performance: tracking capability at 400 Hz with multi-frame smoothing filters to reduce latency to ~0.03 s
• High-precision positioning: positioning accuracy around 0.1 mm (RMS ~0.12 mm)
• Efficient multi-target tracking: supports simultaneous tracking of multiple objects for complex scenarios
• Optimized mechanical design: OEM structure customization and reserved external expansion interfaces

Technical specifications
Overall dimensions — 587*88.5*97.6 mm
Sampling frequency — ≥400 Hz
Positioning accuracy (RMS) — 0.12 mm
Maximum tracking capacity — 25 tools / 200 markers
Optimal tracking range — 950 mm ~ 2400 mm
Maximum working distance — 3 m

Application scenarios

• Surgical navigation
• Motion capture
• Robot-arm control

Application fields

• Smart medical
• Industrial manufacturing
• Research and education
• Film and entertainment

Features / Technical specifications

• High tracking frame rate: >400 Hz
• Positioning accuracy: RMS ~0.12 mm (approx. 0.1 mm level)
• Maximum tracking capacity: up to 25 tools or 200 markers
• Tracking range: optimal 950–2400 mm, maximum working distance 3 m
• Overall dimensions: 587*88.5*97.6 mm
• Supports multi-target tracking, OEM structural customization and external expansion interfaces
