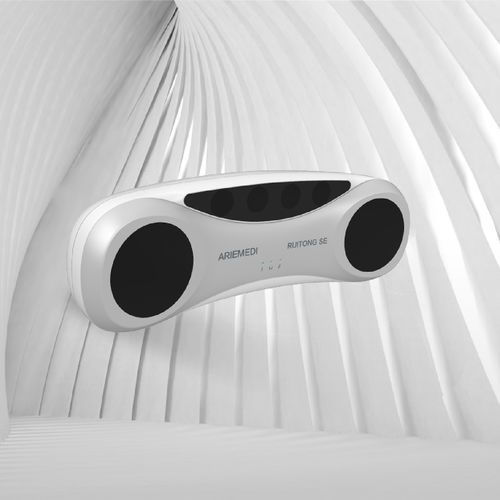

Medical industry 3D scanner Ruitong® SE

intraoralfacialstructured light

Product description
瑞瞳®SE 3D is a binocular structured-light 3D vision sensor engineered for near-field medical applications that require high-speed reconstruction and sub-millimeter positioning. The device integrates advanced light-field capture and depth analysis in a compact housing to enable markerless instantaneous registration and stable markerless face and instrument tracking. It is optimized for intraoral, transcranial magnetic stimulation (TMS) navigation and other near-field medical scenarios with strict real-time reconstruction demands.

Breakthrough technology

• Real-time high-speed reconstruction
  • Binocular imaging delivers reconstruction accuracy ≤0.7 mm (RMS) enabling real-time 3D reconstruction
  • Supports continuous dynamic 3D modeling for smooth response in high-speed workflows
• Stable sub-millimeter accuracy
  • Both positioning and reconstruction accuracy achieve sub-millimeter performance within the visible working range
  • Consistent precision across the effective range to meet navigation, collision avoidance and scanning requirements
• Integrated reconstruction and tracking
  • Combines high-precision optical instrument tracking with real-time 3D reconstruction
  • Unified scene and instrument coordinates to support AR navigation and human-machine collaboration
• High integration, compact footprint
  • Highly integrated design merges reconstruction and tracking functions in one unit
  • Compact structure simplifies system architecture and reduces integration effort and development cost

Product specifications
Specification | Value
Dimensions | 288.5×95.5×81.5 mm
Positioning accuracy (RMS) | 0.2 mm
Reconstruction accuracy (RMS) | ≤0.7 mm
Sampling frequency | 120 Hz

Application scenarios

• Rehabilitation and therapy: TMS navigation, surgical assistance, rehabilitation training
• Industrial & research: robotic obstacle avoidance, unstructured part localization, rapid 3D scanning

Features / technical details

• Technology platform: Binocular structured-light 3D vision sensor integrating reconstruction and positioning
• Reconstruction accuracy: ≤0.7 mm (RMS)
• Positioning accuracy: 0.2 mm (RMS)
• Sampling frequency: 120 Hz
• Dimensions: 288.5×95.5×81.5 mm
• Functions: markerless instantaneous registration, markerless face stable tracking, real-time dynamic 3D modeling, high-precision instrument tracking
