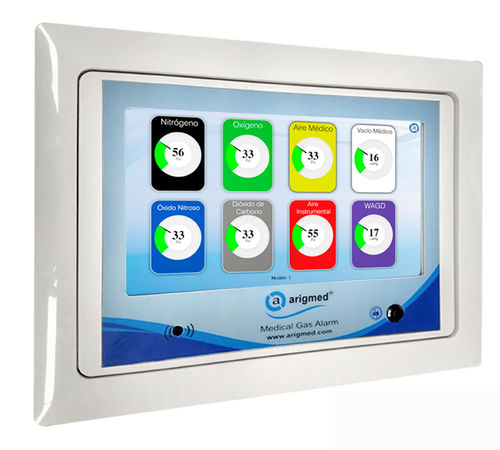

Medical gas alert system 8G

with geolocalization

Cabinet Options: • To embed in wall ABS Thermoplastic injection front meeting NFPA 286, galvanized steel sheet alarm mounting chasis made. • To superimpose on a wall made of galvanized steel sheet white color powder coating finish. Gas Number: • To 1 and up to 8 simultaneous médical gases in the médical gas alarm zone. Graphics: • Pressure and vacuum readings on real time. • NFPA99 color and Médical gas Name option. • ISO color and Médical gas Name option. • Flashing Alarms in each médical gas Module. • Disconnections and Crossing of médical gas sensors. • Display of area name where the médical gas alarm zone will be located. Alarm Events: • High and Low pressure Alarms on real time. • Signal interruption or disconnection in the sensors Alarm. • Cross connection of médical gas sensors Alarm. • On-screen warning when the alarm activation parameters are not those specified by the NFPA99-2015 code Communications: • RD45 female ports for data input and output. • Dry contact relay port for data output (1 port). • RS485 communication protocol in SERIAL connection to connection with zone alarm groups and with Arigmed's SERIES 2 master alarm panel. • Connection to INTRANET and EXTRANET (INTERNET) through the ARIGMED ETHERNET INTERFACE with HTML to view the system with remote devices such as PC, TABLET, SMARTPHONE via website. Features: • Parameter modifications by user to change Units, cut-off levels for pressure and Hysteresis. • Editing Name of the area where the zone alarm will be located.
