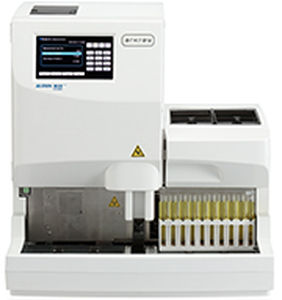

Automatic urine analyzer AX-4060

for clinical diagnosticbenchtop

Color Touch Panel for good usability 7 inch color touchscreen with high operability displays measurement results, instrument conditions and operating instructions. As the sample is drawn through the nozzle and delivered correctly and quantitatively to each pad of the strip, the micro volume samples (minimum 1mL) can be measured easily. No cross contaminations are found on the reagent portions despite high sample volume. Specification Reagent - AUTION Sticks/ Uriflet S Measurement items - GLU (Glucose), PRO (Protein), BIL (Bilirubin), URO(Urobilinogen), PH (pH), BLD (Blood), KET (Ketones),NIT (Nitrite), LEU (Leukocytes), CRE (Creatinine), ALB(Microalbumin), P/C (Ratio of Protein to Creatinine),A/C (Ratio of Albumin to Creatinine), S.G. (Specific gravity),turbidity and color tone Measurement range - Test strip: For rank table, see page 1-12. S.G.: 1.000 to 1.050(Resolution: 0.001) Color tone: For color classification diagram, see page 1-10. Turbidity: Three levels including "clear", "turbid" and "dense turbid" Measurement principle - Test strip: Dual-wavelength reflectance measurement (Single wavelength for BLD) S.G.: Reflection refractometry Color tone: Light-transmission measurement Turbidity:Light-scattering measurement Measurement wavelength - 5 LED wavelengths (450, 525, 562, 635 and 760 nm) Test strip reaction time - Approximately 60 seconds Test strip storage - Two test strip storage compartments, each of which can contain different test strips Test strip storage capacity - Maximum 200 test strips x two storage compartments Processing speed - Normal measurement: Maximum 225 samples/hour Small volume measurement: Maximum 112 samples/hour
