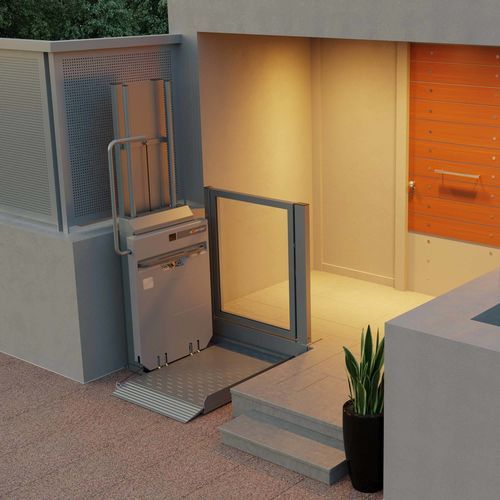

Floor-mounted lifting platform PLV9

wheelchair

Electrically operated lifting platform
Suitable for wheelchair users
The compact all-rounder for easy retrofitting
For indoor and outdoor use

Technical specifications

• Travel height: max. 1.4 m
• Load capacity: 225 kg
• Colour: Standard RAL 9006
• Platform sizes in mm: 800×800, 900×800, 1000×800, 1250×800
• Special platform sizes in mm: 800 × 650, 800 × 710, 800 × 760, 900 × 760, 1000 × 710, 1000 × 760, 1000 × 900, 1210 x 830, 1300 x 800
• Stops: 2
• Travel speed: max. 9 m/min
• Installation type: column or wall mounting
• Many options available

Advantages

• Foldable platform
• Smooth ride
• Space-saving design
• No pit required
• Reusable without modification
• Easy retrofitting
• Self-explanatory fault display
• Remote monitoring of operating status possible

Areas of application
Private and public buildings for platforms or terraces

High quality – 100% Made in Austria, durable, robust and stylish
