Air-tight door RR300 Clean

for the pharmaceutical industryfor clean roomsroll-up

Overview
Protect against drafts, humidity, dust and dirt with the ASSA ABLOY RR300 cleanroom high speed doors. Cleanroom high speed doors feature an almost airtight seal, which minimizes pressure drop and protects your environment against drafts, humidity, dust and dirt. The airtight doors comply with international cleanroom standards and are certified by the Fraunhofer Institute.

Applications

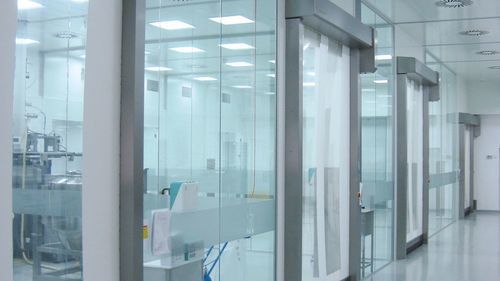

Ideal for cleanroom applications in pharmaceutical, chemical, electronics and micro-mechanics industries.

Key features

• Almost airtight seal minimizing pressure drop
• Fast opening and closing speed to control air exchange and reduce contaminants
• Break-away system to ensure maximum safety for personnel and equipment
• Contactless Safety Edge prevents accidents even at high speeds
• Optional contactless actuator for hands-free opening (reduces risk of contaminants)

Design and equipment
ASSA ABLOY RR300 Clean is designed for medium-sized openings. It provides high air-tightness and fast operating speed. Contactless Safety Edge prevents accidents even under high speeds. ASSA ABLOY RR300 Clean is also available with an optional contactless actuator that makes it possible to open the door with a simple wave of a hand. This reduces the risk of contaminants passing between your hand and the door side frames.

Description (technical list from product leaflet)

• Speed open/close: up to max. 2.0/1.0 m/s
• Door design: stainless steel V2A
• Door curtain: clear PVC
• Electrical safety contact edge and door line photocell as standard
• Integrated cable guide
• Designed according to the Workplace Directive and the harmonized CE guidelines including EN 13241-1

Specifications

• Airtightness: almost airtight (minimizes pressure drop)
• Certification: certified by the Fraunhofer Institute; complies with international cleanroom standards
• Opening/closing speed: up to 2.0 m/s (opening) and 1.0 m/s (closing) (max values reported)
• Construction: stainless steel V2A door design
• Curtain material: clear PVC
• Safety: electrical safety contact edge, door line photocell, break-away system, contactless Safety Edge
• Optional: contactless actuator (hand-wave opening)
• Intended use: medium-sized openings in cleanroom/controlled environments (pharmaceutical, chemical, electronics, micro-mechanics)
• Standards: EN 13241-1 and relevant CE guidelines
