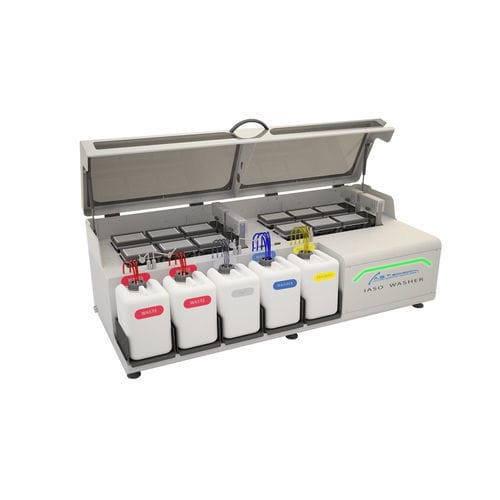

Automatic microplate washer IASO WASHER

laboratory

Product name
Iaso Washer

Key features

• Modular system composed of 4 independent washing modules.
• Each module includes 3 independent microplates with individual shakers.
• 24-needle manifold per module: 8 needles for aspiration, 8 for dispensing wash solution or H2O, and 8 for dispensing a single reagent for overflow control.
• Double dispensation via the 24-needle manifold to optimize workflow.
• Low power consumption (200 W) and direct operation from 24 Vdc; compatible with solar or wind power sources and suitable for mobile unit installation.

Usage / Operation
The modular architecture enables parallel processing of washing tasks through multiple modules, microplates and dedicated manifold needles for aspiration and dispensing, improving throughput in diagnostic and laboratory workflows.

Technical specifications

• Architecture: 4 independent washing modules.
• Microplates per module: 3 independent microplates with individual shakers.
• Manifold: 24-needle manifold per module (8 aspiration + 8 wash dispensing/H2O + 8 single-reagent dispensing for overflow control).
• Dispensation: Double dispensation capability via 24-needle manifold.
• Power consumption: 200 W.
• Power supply: Direct 24 Vdc operation; compatible with solar/wind power sources.
• Installation: Suitable for mobile unit installation.
