Electric stimulator PhysioGo 101A

tabletopTENS

Overview

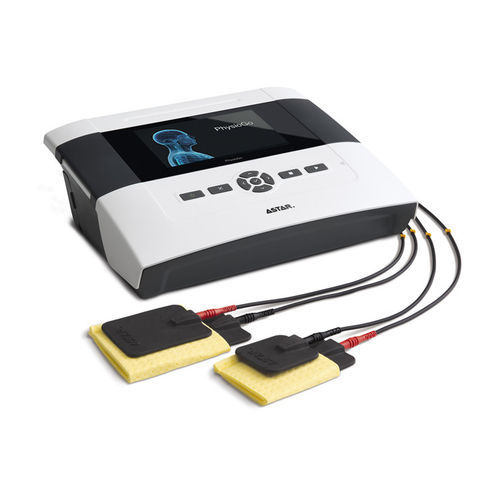

The ASTAR PhysioGo 101A is a professional two-channel electrotherapy unit designed for physiotherapy clinics. It supports a broad range of therapeutic currents and semi-automatic electrodiagnostic procedures (I/t curve). A built-in Li‑ion battery (2250 mAh, optional 3400 mAh) allows up to approx. 5.5 hours of mobile operation.

Comfort and safety
The device features an ergonomic design with a 7-inch color touch display and an integrated treatment encyclopaedia. It complies with EU Regulation 2017/745 and includes startup self-test and electrode test functions to verify device status.

Benefits for the patient

• Easy transport: lightweight design and dedicated carrying bag for safe transfer between clinic sites.
• Battery operation: rechargeable battery enables treatments without mains connection for mobile sessions.
• Therapeutic versatility: supports a wide range of currents and semi-automatic electrodiagnostics to assess muscle condition and select optimal stimulation parameters.

Therapeutic currents and electrodiagnostics
Supports microcurrents, Kotz, TENS, currents for spasticity therapy, diadynamic currents, impulse currents (rectangular, triangular, Trabert), tonolysis, galvanic currents and more. Semi-automatic neuromuscular diagnostics (I/t curve) are available for objective assessment.

Benefits for the physiotherapist

• Built-in treatment encyclopaedia with graphic and methodological guidance.
• Preset database: 69 built-in programs and 38 predefined sequences combining multiple current types.
• Customisation: create and name up to 50 user programs and 10 sequences; mark favourite programs; manual mode and independent parameter control.
• Two independent channels: enable four-electrode protocols or simultaneous separate stimulations.

Design and quality
Premium-class components and modern appearance; comfortable 7-inch touch display. Recognized by physiotherapists in Poland and internationally.

Documents available
Technical documents include accessory connections, applicator card and a downloadable product card.

Technical specifications

• Product code: A-UE-AST-PHG101A
• Model: PhysioGo 101A
• Display: 7-inch color touch panel
• Channels: 2 independent channels (full galvanic isolation)
• Intensity control: simultaneous or separate regulation per channel
• Electrode test: available
• Operation modes: manual and program; CC (current stabilization) and CV (voltage stabilization)
• Preset programs: 69
• User programs: up to 50
• Preset sequences: 38
• User sequences: 10
• Favourite programs: supported
• Editable program names and sequences: supported
• Encyclopaedia: treatment methodology included
• Treatment statistics: available
• Buzzer volume control: available
• Battery type: Li‑ion
• Battery capacity: 2250 mAh (option 3400 mAh)
• Power supply: 230 V, 50/60 Hz
• Dimensions: 34 x 28 x 11–16 cm
• Weight: 6 kg
• Timer: 30 s – 60 min
• Electrotherapy — max. current (CC mode): galvanic 40 mA; diadynamic/impulse/tonolysis unipolar pulses 60 mA; interferential/Kotz/unipolar sine surge/tonolysis trigger & bipolar stimulating pulses 100 mA; TENS and SP‑TENS 140 mA; microcurrents 1000 µA
• Electrotherapy — max. voltage (CV mode): interferential/Kotz/pulse/unipolar sine surge/tonolysis 100 V; TENS and SP‑TENS 140 V
