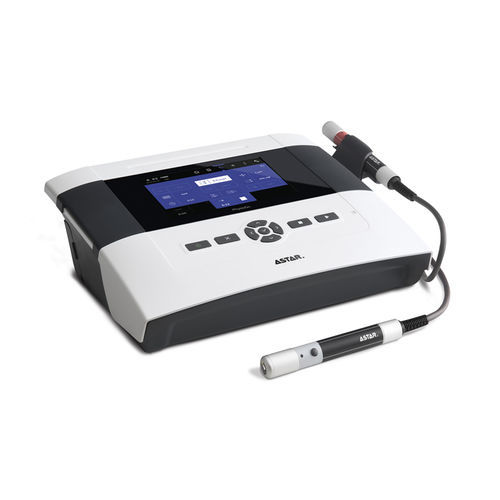

Physical biostimulation laser PhysioGo 401C

physical therapydiodeclass 3B

Overview
The PhysioGo 401C is a professional biostimulation laser therapy device designed for physiotherapy and rehabilitation settings. It delivers controlled therapeutic laser radiation at 660 nm and 808 nm and is engineered for portable use with an integrated Li‑Ion battery.

Benefits for the patient

• Multiple applicators for targeted therapy: scanning laser, cluster laser and point probes for superficial (660 nm) and deeper (808 nm) tissue treatment.
• Cluster applicator maximum output up to 1800 mW (combination of five infrared and four red diodes) for covered-area therapies.
• Accurate dose and wavelength selection to support reproducible therapeutic outcomes.

Safety and compliance

• Automatic self-test at power on with accessory readiness indication.
• Built-in laser applicator power test function for performance verification.
• Conforms to Regulation (EU) 2017/745 (MDR) and relevant laser safety class 3B requirements.

Benefits for the physiotherapist

• Portable design with compact dimensions and carry bag for multi-site use.
• Rechargeable Li‑Ion battery providing up to 5.5 hours operation (401C version), enabling treatments without continuous mains connection.
• Three independent treatment channels allow concurrent delivery of up to three separate protocols; supports simultaneous combined applicator treatment (e.g., scanning + point probe) to reduce session time for large areas.

Modernity and ergonomics

• 7-inch colour touch display with an intuitive user interface for quick parameter setup.
• Manual and program modes: manual parameter setting and automatic calculation of treatment time based on power, dose, frequency and treatment area.
• Onboard database of predefined programs and capability to create and store custom user programs.

Preset treatment programs and memory

• 137 predefined treatment programs covering common indications.
• Device memory for up to 200 user-defined programs and up to 50 user programs per applicator where applicable.
• Predefined acupuncture-related programs: 8 Nogier and 30 Voll frequency programs.

Channels and accessories

• Operable with scanning laser, cluster laser and red/infrared point probes.
• Dedicated modes for optical fibre applicators for laserpuncture and ENT applications.
• Pilot beam for accurate indication of the application site.

Technical specifications

• Product code: A-UL-AST-PHG401C
• Colour touch display: 7"
• Independent treatment channels: 3
• Operation modes: manual (with self-test) and program
• Treatment timer range: 1 s – 100 min
• Laser device class: 3B
• Red point probes wavelength: 660 nm; max power: 80 mW
• Infrared point probes wavelength: 808 nm; max power: 400 mW
• Scanning applicator wavelengths: 808 & 660 nm; max power: 450 & 100 mW
• Cluster applicator composition: 4 x 808 nm & 5 x 660 nm; max power: up to combined architecture values (e.g., 4 x 400 mW & 5 x 40 mW)
• Power regulation (point probes): 25%, 50%, 75%, 100%
• Power regulation (scanning/cluster): 50%, 100%
• Pulse frequency range: 1 – 5000 Hz; duty factor in pulse mode: 10 – 90%
• Emission modes: continuous and pulsed
• Automatic laser power test and automatic time calculation relative to treatment parameters
• Preset program counts: IR point probe 39; R point probe 18; Nogier 8; Voll 30; scanning sequences 26; cluster programs 54
• User-defined biostimulation programs: 50 per applicator
• Features: favourites, program naming, treatment methodology encyclopedia, treatment statistics, adjustable buzzer volume
• Dimensions: 34 x 28 x 11–16 cm
• Weight: 6 kg
• Battery: Li‑ion, capacity 2250 mAh or 3400 mAh (depending on version)
• Power supply: 230 V, 50/60 Hz
