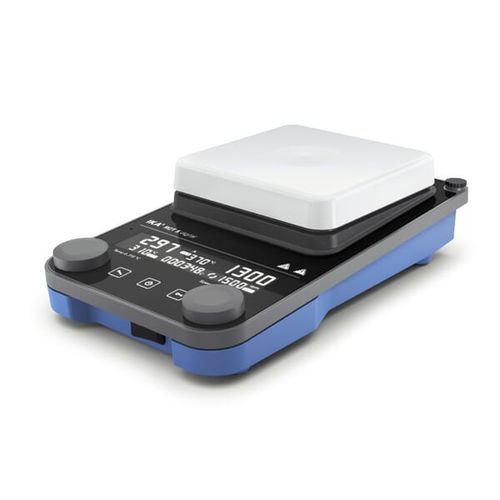

Magnetic laboratory stirrer IKA RCT 5

digitalheating

The new magnetic stirrer RCT 5 digital has a fantastic 850 W of power, making it an ideal device for demanding stirring tasks up to 20 Litres. It has a multifunctional menu so whether you’re determining the direction of rotation, timer functions or sequence programming – the stirring process can be programmed individually from beginning to end. In this way, the reaction runs reliably and safely even without monitoring. The rectangular plate has a scratch-resistant white ceramic coating which is less prone to scratches than a conventional magnetic stirrer plate. The display is made of chemical resistant and hardened glass to increase user safety, and in addition, a symbol on the display warns users when the surface is hot to protect from burning. Specification Number of stirring positions 1 Stirring quantity max. per stirring position (H2O) 20 l Motor rating output 9 W Direction of rotation right / left Speed display set-value LCD Speed display actual-value LCD Speed control Turning knob Setting accuracy speed 10 rpm Stirring bar length 30 – 80 mm Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) 13 +K Heat output 850 W Temperature display set-value LCD Temperature display actual-value - LCD Temperature unit °C / °F Heat control Turning knob Temperature setting resolution of heating plate 1 K Connection for ext. temperature sensor PT1000, ETS-D5, ETS-D6 Temperature setting resolution of medium 1 K Set-up plate material - Aluminum with ceramic coating Set-up plate dimensions 137 x 137 mm Automatic reverse rotation yes Intermittent mode yes Viscosity trend measurement es Timer yes Timer display LCD
