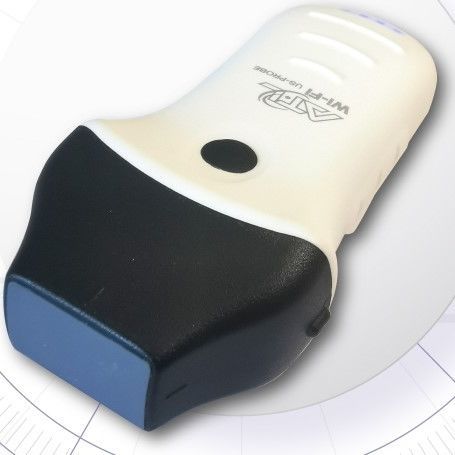

Hand-held ultrasound system IDEAcw C-MatrixSound

for multipurpose ultrasound imagingcolor dopplerphased-array

Description
The IDEAcw C-MatrixSound is a wireless handheld ultrasound probe designed for point-of-care diagnostics. It integrates a PHASED ARRAY 2.2–3.6 MHz transducer with Color Doppler, PW and CW modes. Compact dimensions (110 × 54 × 30 mm) and low weight (165 g) support portable use in emergency, critical care and vascular access workflows.

Operating features
Software compatibility: Android, iOS, Windows. Connections: Wi‑Fi (802.11n 2.4G/5G) and USB Type‑C. Charging: USB Type‑C and inductive wireless charging base. Integrated high‑capacity rechargeable batteries (2 × 3.8 V – 2600 mAh – 9.88 Wh). Scan autonomy: approx. 8 hours; standby up to 120 hours. Charging time: max 1 h via USB, max 1.5 h via wireless charger. Probe can operate while connected and charge from a connected tablet/smartphone battery.

Key benefits

• Portability and ease of use for physicians and paramedics
• Real‑time diagnostic support for triage
• Field and intraoperative use
• Reduced contamination risk due to sealed wireless design
• Quick user interface for FAST protocols
• Remote diagnosis capability via app
• Firmware and app updates
• Latex‑ and phthalate‑free
• Reduced patient transfer and travel distances
• Time saving and cost reduction in clinical pathways

Applications
General imaging — Cardiology
Emergency department — Neonatology
Ambulance — General practice

Technical characteristics / Specifications

• Technical name: Handheld Wireless Ultrasound Probe IDEAcw – C‑MATRIXSOUND
• Model: Idea cw (C10CW-ATL)
• Transducer: PHASED ARRAY 2.2–3.6 MHz; Color Doppler; PW; CW
• Software systems: Android, iOS, Windows
• Buttons: Power on/off; Freeze/unfreeze
• Connections: Wi‑Fi / USB (Type‑C)
• Wi‑Fi type: 802.11n / 20 MHz / 2.4G / 5G
• Scan depths: 90 / 130 / 160 / 200 / 240 mm
• Scan angle: 80°
• Phased array footprint: 25 mm × 16 mm
• Dimensions: 110 × 54 × 30 mm
• Weight: 165 g
• Surface: anti‑slip
• Liquid protection rating: IPX8
• Imaging modes: B, B+B, B+M, Color, PDI, PW, CW
• Double & Full screen display: supported
• Software controls: Gain, Color Gain, Depth, Enhancement/Denoise, Dynamic Range, Harmonic, Focus, 8 TGC, Mid‑Line, Marker Left/Right Up/Down
• Probe marker: present
• DICOM: supported
• Image/video formats: JPEG, MP4, DICOM
• Cine loop: automatic/manual; 100/200/500/1000 frames
• Frame rate: 24 fps
• Presets: Abdomen, Cardiac + 2 user‑customizable presets
• Measurements (B‑Mode): Length, Angle, Circumference, Depth, Volume; Pan‑zoom imaging / pre‑post processing measures
• Measurements (B+M): Heart rate, Time, Distance, LVID (LVIDd, LVIDs, EF, SV)
• Measurements (B+PW+CW): velocity [cm/s], heart rate [bpm], ps/ed [cm/s], s/d, resistance index, depth [mm]
• PRF: 2.0; 2.5; 3.2; 4.0; 6.0; 8.0; 10.0; 20.0 K
• Batteries: integrated rechargeable 2 × 3.8 V – 2600 mAh – 9.88 Wh (Li‑ion)
• Power consumption: 3 W (online) – 1 W (freeze)
• Operating time: ~8 hours; standby: 120 hours
• Charging time: max 1 h USB; max 1.5 h wireless
• Charging types: Type‑C USB and inductive wireless charging base
• Integrated cooling system: present
• Regulatory/Classification: CND Z11040106 — Class IIa
