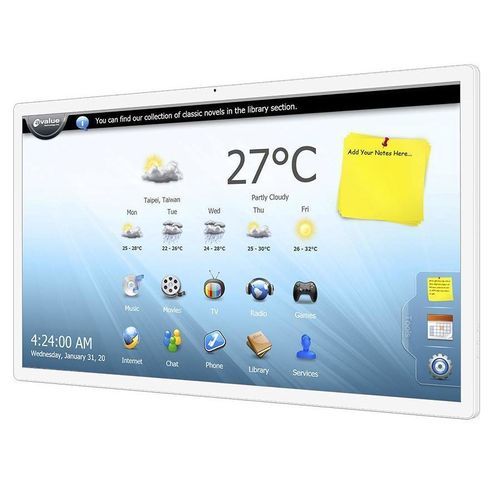

ARM Cortex information terminal APC-32WR6

The APC-32WR6 is a 32" ultra-slim ARM-based Android touch panel engineered for check-in kiosks, digital signage and patient-facing terminals in healthcare settings. It supports portrait mode, rapid deployment with Google EDLA and secure operation in a hospital-friendly white ABS casing. Flexible connectivity includes Powered LAN (802.3bt), NFC, an 8.0MP front MIPI camera and multiple video inputs for integration.<br><br><b>Key features</b><br><ul><li>Fast deployment and secure performance with Google EDLA on an ARM-based platform</li><li>Powered LAN (802.3bt) & VESA 100 x 100 mm mounting for simplified installation</li><li>Ultra-slim white ABS enclosure designed for clinical environments</li><li>Built-in NFC module and 8.0MP front MIPI camera for patient identification and self-service</li><li>Supports HDMI-in and USB Type-C video input for flexible signage and kiosk setups</li></ul><br><br><b>Technical specifications</b><br><ul><li>Processor: Rockchip RK3576S (Quad core Cortex-A53 + Quad core Cortex-A72)</li><li>Memory: 4 GB LPDDR4</li><li>Graphics: Mali-G52 MC3 (OpenGL ES 1.1/2.0/3.2, Vulkan 1.2, OpenCL 2.1)</li><li>OS: Android 14 (Google EDLA compatible)</li><li>Storage: 32 GB eMMC</li><li>Display: 32" LCD; Resolution 1920 x 1080; Luminance 300 cd/m²; Contrast 1000:1; Viewing angle 178° / 178°</li><li>I/O: 1 x USB 3.0; 1 x USB 2.0; 1 x USB Type-C</li><li>Network: 1 x RJ45 (10/100/1000 Base-Tx, GbE compatible); optional Wi‑Fi 802.11b/g/n/a/ac/ax; optional Bluetooth 5.4</li><li>Video: 1 x HDMI-in; USB Type-C video input</li><li>Audio: 2 x 4Ω 5W speakers</li><li>Data collection: NFC 13.56 MHz (ISO/IEC 18092, 21481, 14443 A & B, 15693, JIS X 6319-4, MIFARE); 1 x MIPI 8.0 MP camera</li><li>Power: 12V DC input / Powered LAN (802.3bt); adapter input 100 ~ 240 Vac / 50 ~ 60 Hz; adapter output 60W (12V/5A)</li><li>Mechanical: Dimensions 735.6 x 436.2 x 36.5 mm; Weight 7.7 kg; Construction ABS; Mounting VESA 100 x 100 mm (wall mount bracket included); Color White</li><li>Operating temperature: 0°C ~ 40°C; Operating humidity: 20 ~ 80% RH</li><li>Storage temperature: -20°C ~ 60°C; Storage humidity: 20 ~ 80% RH</li><li>System: Fanless</li></ul>
