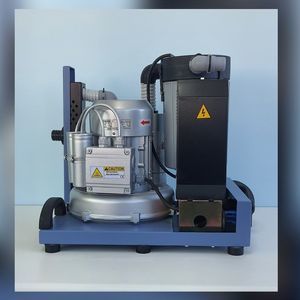

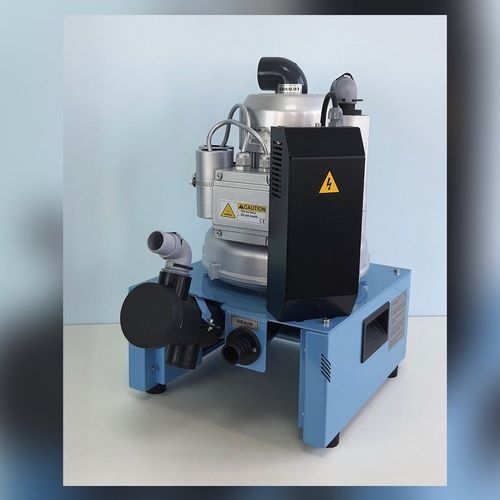

Dental unit suction system Avior Direct

salivadental clinicaerosol

Product
Semi-wet dental suction unit for direct installation. Model Avior Direct provides continuous suction for dental treatment rooms with automatic on/off via microswitch and an adjustable run-on delay.

Key features

• Semi-wet system suitable for dental clinics and operatories
• Continuous suction with PCB-controlled adjustable run-on delay
• Automatic on/off via microswitch; direct installation
• Hose connection: 25 mm standard, 30 mm optional
• Compact dimensions and wall/floor mounting options

Technical specifications

• Voltage: 104–127 V or 208–254 V
• Frequency / power: 50 Hz / 0.55 kW · 60 Hz / 0.62 kW
• Dimensions (H × W × D): 46 × 30 × 50 cm
• Weight: approx. 20 kg
• Motor type: 0.55 / 0.62 kW side channel blower
• Current consumption: 3–3.8 A
• Air flow: 1,300 L/min
• Motor speed: 2,800 rpm
• Vacuum: −110 mbar (±10 %)
• Liquid capacity: 10–12 L H₂O/min
• Hose diameter (in/out): 25 mm standard / 30 mm optional
• On/off: Automatic via microswitch
• Colour / finish: RAL 9016 white, electrostatic powder coating
• Operation: Continuous suction; PCB with adjustable run-on delay

Installation & operation

• Designed for direct installation close to treatment areas
• Continuous operation with reliable side channel blower
• Automatic start/stop simplifies integration with dental chairs
• Maintenance: accessible components and recommended checks of hoses and blower

Finish & handling

• Electrostatic powder coating RAL 9016 (white)
• Approx. weight 20 kg for secure mounting considerations
• Hose options for system adaptation and retrofit
