Patch patient monitor CAM

compactwearableECG

Overview

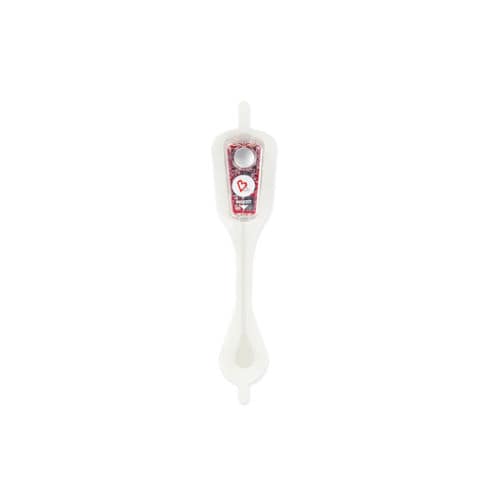

The CAM Patch is a lightweight, extended‑wear cardiac monitor engineered for high‑quality atrial signals through optimized P‑wave capture. Designed to be placed along the sternum to optimize P‑wave signal capture, the CAM Patch improves ECG resolution and provides clinicians with more clinically actionable information for arrhythmia diagnosis. The device is single‑use, wire‑free and intended for ambulatory ECG data collection. Rx Only.

Key Benefits

• Physician clarity: P‑wave‑centric design and a proprietary CAM Report format to support improved clinical decision‑making.
• Patient comfort and compliance: Lightweight, compact form factor preferred by patients compared to standard 3‑lead Holter.
• Practice convenience: Single‑use design, flexible support tools (patient management portal, MTP service, download station) and EHR integration for tailored workflows.

BDxCONNECT (Data Management & Workflow)

• Web‑based portal to support end‑to‑end workflow for transmitting and managing processed ECG data recorded on the CAM Patch.
• Intuitive interface for quick patient registration at time of application.
• Secure cloud connection complying with HIPAA and ISO/IEC 27001.
• EHR integration via BDxCONNECT API for registration, diary input and report retrieval.
• Notifications and alerts: automatic notifications for critical events, data upload reminders, and report‑ready status.

CAM Report: actionable, multi-field reporting
CAM Report uses multiple field views to provide context for events and supports rapid turnaround of findings.

Field views (reported in CAM Report)

• Near‑Field View: 8‑second traditional view with R‑R measurements (ms).
• Medium‑Field View: 56‑second snapshot (24 seconds prior and 24 seconds after an event).
• Far‑Field View: 40‑minute R‑R interval plot in bpm capturing 20 minutes prior to and 20 minutes after an event.

Clinical Performance & Wearability

• Engineered to optimize P‑wave capture to better differentiate atrial vs ventricular arrhythmias.
• Extended battery and memory enabling up to 14‑day wear with long‑term adhesive suitable for sensitive skin.
• Wire‑free and wearable during sleep, shower and exercise.
• Clinical data indicate higher diagnostic yield versus comparators in cited studies.

Comparative Table (high-level)
Columns: CAM / Zio® XT / Holter
P‑wave centric: CAM = ✓ ; Zio XT = ; Holter =
Near‑, Medium‑, and Far‑Field report views: CAM = ✓ ; Zio XT = ; Holter =
Option to analyze data using your own ECG technicians: CAM = ✓ ; Zio XT = ; Holter = ✓
Wire‑Free: CAM = ✓ ; Zio XT = ✓ ; Holter =
Wearable during sleep, shower & exercise: CAM = ✓ ; Zio XT = ✓ ; Holter =

Service Options

• Flexible analysis: analyze data in‑house with your ECG technicians or elect reports prepared by Baxter's IDTF (U.S.).
• Report turnaround: CAM Report is typically available within 2 business days after direct upload to BDxCONNECT (service model dependent).

Other Information
The Carnation Ambulatory Monitor (CAM Patch) is intended for ambulatory collection of ECG data. The CAM system includes the wearable patch device, data upload tools and physician‑focused CAM Report analyses. Trademarks: Baxter, Bardy, BDxCONNECT and CAM are trademarks of Baxter International Inc. or its subsidiaries.

Technical specifications

• P‑wave centric single‑channel sternal ECG monitor (CAM Patch).
• Extended‑wear capability: up to 14 days (extended battery and memory).
• Wire‑free, single‑use device design.
• Wearable during sleep, shower and exercise; long‑term adhesive suitable for sensitive skin.
• Multi‑field reporting: Near‑field (8 s), Medium‑field (56 s), Far‑field (40 min R‑R plot).
• Data management via BDxCONNECT portal: secure upload, HIPAA and ISO/IEC 27001 compliant, EHR integration available.
• Analysis options: in‑house ECG technicians or Baxter/IDTF‑prepared reports; typical CAM Report turnaround ≈ 2 business days from direct upload.
• Intended use: ambulatory ECG data collection. Prescription use only.
