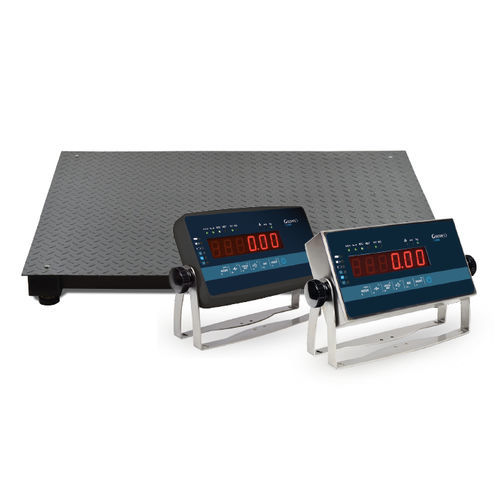

Electronic platform scale TGI
multifunctionalwith LED displayautomatic

electronic platform scale
electronic platform scale
Add to favorites
Compare this product


Characteristics

Heating technology
electronic
Applications
multifunctional
Display type
with LED display
Function
class III, automatic
Weighing capacity

300 kg, 600 kg, 1,500 kg
(661.39 lb, 1,322.77 lb, 3,306.93 lb)

Readability

100 g, 200 g, 500 g, 1,000 g
(3.5274 oz, 7.0548 oz, 17.637 oz, 35.274 oz)

Width

800 mm, 1,000 mm, 1,200 mm, 1,500 mm
(31.5 in, 39.4 in, 47.2 in, 59.1 in)

Length

Min.: 800 mm
(31.5 in)

Max.: 2,000 mm
(78.7 in)

Description

Platform with 4 load cells. It can be used in legal metrology. It can be installed on ground. Diamond plate 5 mm thick. Steel framework and top diamond pan. Black enamel. Load cells OIML R-60 C3, in steel, IP66 protection. Junction box in ABS, IP66 protection. Adjustable feet in height. 5 output metres of cable included. Stainless steel or ABS housing, GI400 model. IP54 protection. Red LED display with 6 digits of 20 mm. Wall support included. Power supply 230Vac. 2 output RS232 are included. Unique range, multi-range or multi-interval. Units: kg. Approval 6.000 divisions OIML class III and IV. EC approval. Weight accumulation: automatic/manual Totalization on screen Gross/Net Manual tare and pretare Back to zero Piece counting function Checkweigher with LED signal Function division 1/10 verification. Display for a few seconds
