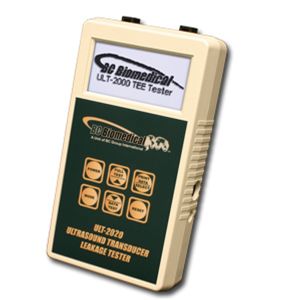

Ultrasonic leak tester ULT-2020

for medical devicesportabledigital

The Model ULT-2000 Series is a family of microprocessor-based Ultrasound Transducer Leakage Testers. The ULT-2010 measures both the conductivity of the cleaning medium and the leakage current of the ultrasound transducer. The ULT-2020 offers the same features of the ULT-2010, plus a Meter Mode and data logging. After many months of conducting an exhaustive evaluation of the BC Group’s Ultrasound Leakage Tester and Probe Adapter, Philips Ultrasound has issued the following statement: Features: • Large graphic display • Selectable options and parameter setup • User-selectable source (challenge) voltage (90 to 275 VAC) • User-selectable source (challenge) frequency (50 or 60 Hz) • User-selectable test limits by ultrasound transducer manufacturer and model • 1% FS measurement accuracy • Auto ranging with 10, 250, or 500 mA FS • Automatic internal self test • Single button press for full system test • Simple PASS / FAIL mode – for non-technical users • Analytical mode – for technical users • Digital calibration – no pots to turn • Battery life display (0 to 100%) • Programmable backlight timer • Flash-upgradeable firmware • RS-232 • PC software (limit configuration tool) • Serial printer output with programmable user header • Real time clock • Compatible with Dale Technology® Dale800 and Fluke Biomedical® ULT 800 ultrasound transducer adapters and dual conductivity probe
