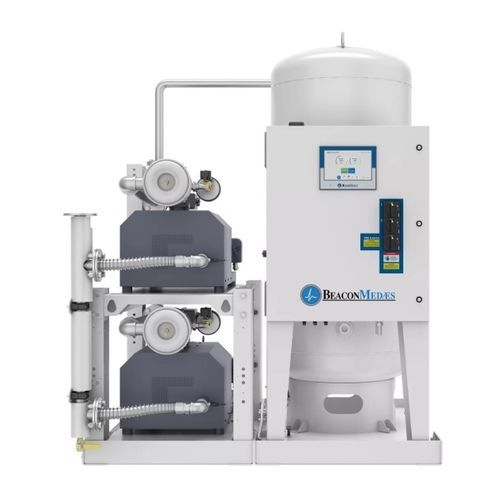

Medical vacuum system VHV02D-060H-D
rotary clawoil-free

medical vacuum system
medical vacuum system
medical vacuum system
Add to favorites
Compare this product


Characteristics

Applications
medical
Technology
rotary claw
Other characteristics
oil-free
Flow

Min.: 16 ft³/min (0.45 m³/min)

Max.: 38 ft³/min (1.08 m³/min)

Power

Min.: 1.5 kW (2.04 hp)

Max.: 11.2 kW (15.23 hp)

Description

Low Maintenance Due to the contact-less operation, the only maintenance is a simple matter of replacing the gear lube and changing an inlet filter annually. The BeaconMedaes Claw Vacuum System utilizes a dry, frictionless, multi-claw technology. The rotors (claw) spin in opposite directions, synchronized via precision gears, creating a highly efficient vacuum system. The rotors never contact the housing or each other, which removes the need for any lubricant or sealing fluid inside the pumping chamber. TotalAlert™ Embedded State of the art TotalAlert™ Embedded controls are the most visible part of the re-engineered medical Claw system. All systems incorporate a large “system” screen with additional “unit” screens for each pump/motor combination. TotalAlert™ Embedded features include: High-detail touchscreen displays vital system information, alarms and warnings, maintenance screens, and event logs Embedded web server, remote monitoring and e-mail/pager alerts Ethernet connectivity for simple installation and TotalAlert™ networking
