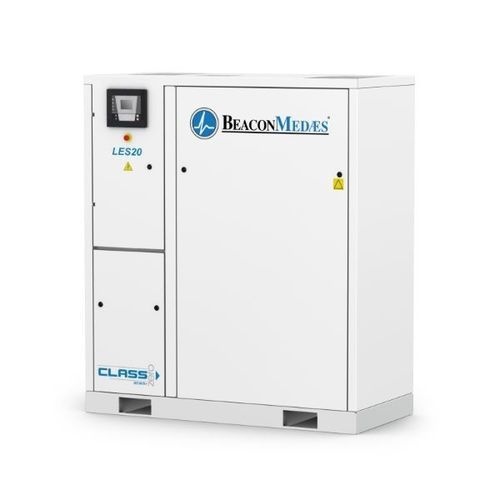

Hospital compressor LES0 series

scrollmodularoil-free

Enclosed Scroll Air Systems deliver high-quality air efficiently and quietly. Ideal for point-of-use or central supply, the compact LES compressed air systems offer simplicity, reliability, and cost-effectiveness. BeaconMedaes’ Service Support ensures a complete solution for your non-medical air needs. 100% oil-free air Healthcare applications require 100% oil-free compressed air. The scroll compression ensures high-quality, ISO 8573-1 Class 0 certified air, eliminating oil risk. All-in-one solution The LES units are a complete package, including the element(s), drive motor(s), aftercooler(s) and starter(s) in a super silent acoustic enclosure to be installed directly into the work environment. Modular design LES units range from Mono (3-7.5 Hp) to Multi (10-30 Hp), with options for integrated dryers. Mono series offers 71-gallon (270L) or 7.92-gallon (30L) tanks and desiccant dryers for optimal dry air delivery. Air inlet filter High efficiency paper cartridge air inlet filter eliminating dust and particles down to 1 µm. High efficiency scroll element Air-cooled scroll compressor elements with 8 and 10 bar (116 and 145 psig) variants, offering proven durability and reliability in operation, in addition to superior efficiency. Silent canopy Thanks to the low-noise scroll element, optimized super-silent fan and sound-insulated canopy, best in class noise levels possible are achieved. Graphic controller While running the Variable Air Delivery algorithm, the graphic controller matches the required air demand, eliminating unload power consumption. Optimized cooler & piping The air cooler is fine tuned for improved performance,
