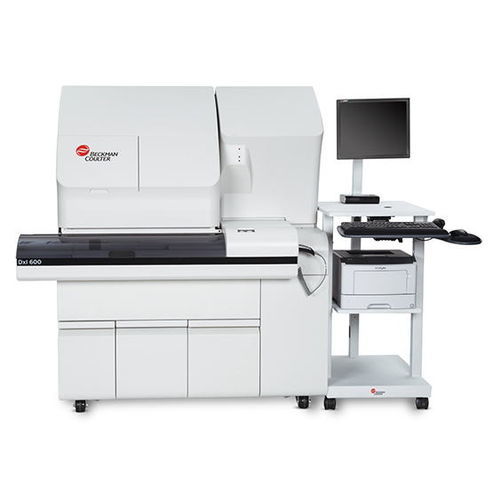

Automated immunoassay analyzer UniCel DxI 600

for clinical diagnosticurineserum

Subhead
Efficient operation designed for hospital and clinical immunoassay workflows.

Overview
Scale your immunoassay laboratory efficiently. The UniCel DxI 600 Access Immunoassay System supports laboratories processing 40,000–80,000 tests per year, delivering up to 200 tests per hour and accommodating up to 60 samples on board. Streamlined maintenance improves analyzer availability, while load-and-go workflows reduce operator intervention. Intuitive user interfaces simplify routine operation and training. The analyzer integrates with automation tracks and laboratory information systems to enhance throughput and data management.

Built for scalability

• Standardized test menus, assay protocols and reference ranges minimize training requirements and simplify inventory management.
• Results correlate across platforms to support consistent patient care.
• Continuous loading of STAT and routine samples addresses peak workflow demands.

Highly flexible

• Primary tubes are released after aliquoting, freeing the system for additional tasks.
• Refrigerated compartment holds up to 50 reagent packs in configurable positions to match testing needs.
• Performs up to 200 tests per hour to accommodate varying throughput requirements.
• Broad assay menu and straightforward operation enable expansion of in-house testing services.
• Capable of integration with automation and laboratory IT systems.

Optimized for the needs of technologists

• Reagents and consumables can be loaded without pausing the instrument.
• Load samples and walk away to perform higher-value tasks while the system runs.
• Large onboard supply capacity maximizes walk-away time.
• Clear monitor and indicator lights identify supplies requiring replenishment.
• Optional remote diagnostic service capability.

Media & supporting materials
Includes product images, brochure and video materials illustrating system features, throughput and intended workflow integration.

Technical specifications

• Model: UniCel DxI 600 Access Immunoassay System
• Typical annual test volume target: 40,000–80,000 tests per year
• Throughput: Up to 200 tests/hour
• Samples on board: Up to 60 samples on board
• Onboard reagent capacity: 50 reagent packs
• Sample types: Serum; Plasma; Urine; Amniotic fluid; Whole blood
• Dimensions (HxWxD): 67 x 61.5 x 37.5 in. (170.2 x 156.2 x 95.3 cm)
