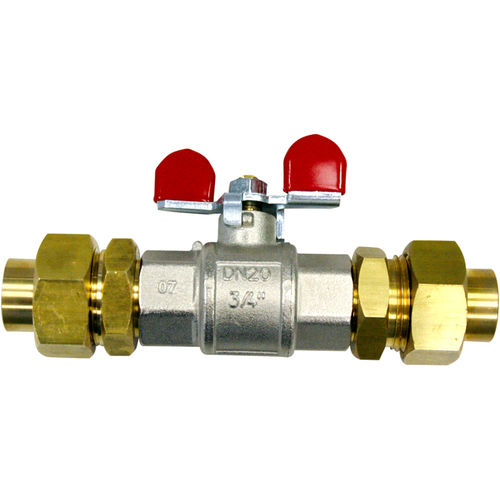

Medical gas valve H Series

vacuum

Service shut-off valves are required to shut off each riser, branch and circuit of a medical gas and vacuum system.Each specific gas supply line must be shut off to complete maintenance or work downstream of the valve.Valve sizes range from 3/8" to 2" and the 3-piece weld-on pipe connectors at the outlets range from Ø 10 mm to Ø 54 mm.On the Ø 3/4" valves and larger, the 3-piece connectors are fitted with O-Rings to provide the best seal under pressure.All materials are oxygen compatible, supplied clean and free of any traces of oil, grease or dust. N.1 ball valve with butterfly lever. N.2 3-piece brass connectors EN ISO 7396-1 | EN ISO 15001
