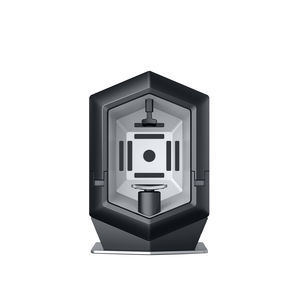

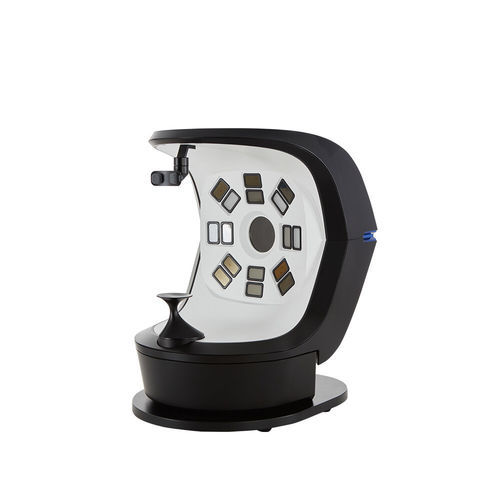

Skin imaging system SK-2019

UV skin imagingskin colorimetrycutaneous hydration level

Product Overview

• Model: SK-2019
• Brand: ADSS
• Delivery: By air, express courier (DHL/TNT/FedEx/UPS) door-to-door, or sea
• OEM/ODM: Customizable hardware and software options
• Suitable for: Beauty salons, hospitals, skin care centers, spas
• Software language: English by default; supports custom system languages
• Warranty: 2-year warranty; 30-day return/refund for quality issues
• Training: Free one-on-one clinical operating training by ADSS senior instructor
• Certification: CE, FDA, TUV (as applicable)

Introduction
The SK-2019 is a 3D skin analysis system that detects surface and subsurface skin conditions through quantitative imaging. It identifies pigmentation, erythema, melasma, vascular features, wrinkles, texture irregularities, enlarged pores and acne, and helps determine true skin type and underlying contributors such as dehydration or sensitivity.

Working Theory
The system captures multispectral images (RGB, UV) and analyzes facial features with proprietary algorithms to quantify skin condition and estimate a 'true skin age'. Results provide objective metrics to guide treatment planning and product selection.

Functions

• Fast multispectral image capture with automated facial feature detection
• True skin age estimation to inform treatment choices
• Percentile scoring using a large reference database for spots, wrinkles, texture, pores, UV spots, brown spots, red areas and porphyrins
• Cloud-based product library for treatment and product recommendations
• Automatic skin type detection to streamline analysis workflow

Advantages

• Aging simulation based on large skin-feature datasets for peer comparison
• Separate visualization of red and brown components to assess vascular lesions, hyperpigmentation, rosacea and acne
• UV photography and UV fluorescence imaging for sun damage and porphyrin assessment
• Rotating capture module for reproducible left, right and frontal facial views
• Cross-polarized and UV lighting with automated flash sequence to record surface and subsurface conditions
• Capture-only mode for rapid, repeatable photographic documentation
• Quantitative metrics to guide selection of skincare products and treatment protocols

Before & After
Includes standardized photographic before-and-after examples to document treatment outcomes and clinical progress.

Technical Specifications
Resolution: 12 MP
Optical source: RGB / UV / CCD
Operating system: Windows
Machine size: 49 x 35 x 42 cm
Net weight: 5.8 kg
Power supply: 110–240 V AC
Frequency: 50/60 Hz ±3 Hz
Current: 3 A (rms)

Additional Features and Services

• Operation and theory videos available for guidance
• Illustrated user manual and instructional videos for assembly, setup, calibration, operation and maintenance
• Free one-on-one clinical training after purchase
• Customization/OEM services for logo, language, appearance and accessories
