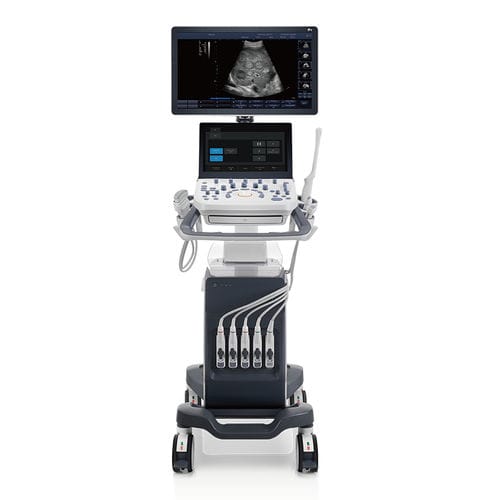

On-platform ultrasound system P9
for multipurpose ultrasound imagingfor gynecological and obstetric ultrasound imagingfor abdominal and pelvic ultrasound imaging

on-platform ultrasound system
on-platform ultrasound system
Add to favorites
Compare this product


Characteristics

Ergonomics
on-platform
Application
for multipurpose ultrasound imaging, for gynecological and obstetric ultrasound imaging, for abdominal and pelvic ultrasound imaging, for cardiovascular ultrasound imaging, for emergency medicine ultrasound imaging, for urology ultrasound imaging, for breast ultrasound imaging, for musculoskeletal ultrasound imaging, for lung ultrasound imaging, for skin ultrasound imaging
Imaging modes
B/W, color doppler, 3D/4D, spectral doppler, elastography, needle guidance
Probe type
convex-array, linear-array, microconvex-array, phased-array, endocavitary
Screen size
19-inch
Weight

55 kg
(121.25 lb)

Length

751 mm
(29.6 in)

Height

526 mm
(20.7 in)

Depth

1,110 mm
(43.7 in)

Description

• P9 main unit • 19" HD Monitor • 5 transducer connector • USB 2.0/Hard Disk 500 GB • Large capacity built-in Battery • Adaptor • Standard Software include: • Imaging modes: B/ 2B/ 4B/ M/ CFM/CFMM/ PDI/ DirPDI/ PW/ CW/ TDI/ AMM • Dynamic Multi-beam Technology • Tissue Harmonic Imaging • Pure Inversion Harmonic Imaging • Tissue Specification Imaging • Spatial Compound Imaging • Widescan: Trapezoid Imaging • Convex Extended Imaging • μ-Scan: 2D speckle reduction technology • PW Auto Trace • TEI Index • DICOM 3.0: Store, Send • Auto: Auto optimization forB/ M/ PW/ CW • TGC: Time gain compensation • Duplex • Triplex • B/C dual live • Standby Mode • Zoom • Auto IMT • 2D Steer • Biopsy Guide
