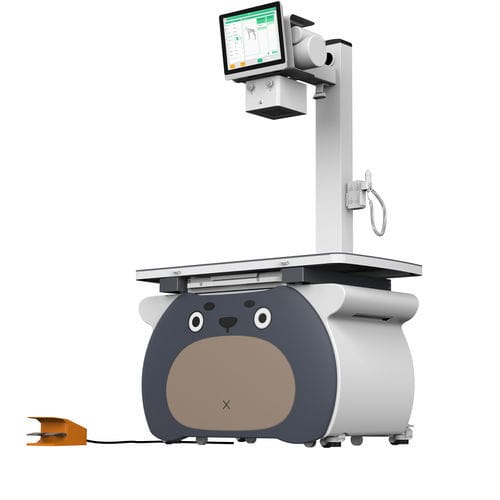

Veterinary X-ray system T100

analogdigital

Overview The veterinary digital radiography (DR) device is a product that caters to the clinical application needs of veterinarians and intergrates multiple patented technologies. With its novel shape, adorable appearance, excellent image chain configuration and minimal operation process design, this product can provide you with high-quality images and an efficient and intelligent operation experiences. Slef-developed Flat Panel Detector High spatial resolution, excellent images, and lower dosage, protecting health. Universal Moving Caster Equipped with universal wheels at the bottom of the table, enabling its easy movement of the table. Preset Shooting Parameters for a Variety of Animals Preset program function specially designed for common animals (cats, dogs, etc.) and a variety of exotic pets (birds, fish, toroises, snakes, etc.), providing shooting parameters according to the physical characteristics of different animals and recommending the best exposure dose. Specification: Power - Single phase, 220V/110AC Maximum power - 8KW Tube voltage - 40kV - 125kV Tube current - 3.2mA - 160mA Loading time - 1~10000ms Current time product - 0.1~250mAs Nominal output power - 8KW(100kV,80mA,0.1s) Instantaneous power - 3KVA Inverter frequency - 100kHz Maximum X-ray tube voltage - 125KV Focal spot - 2.0mm
