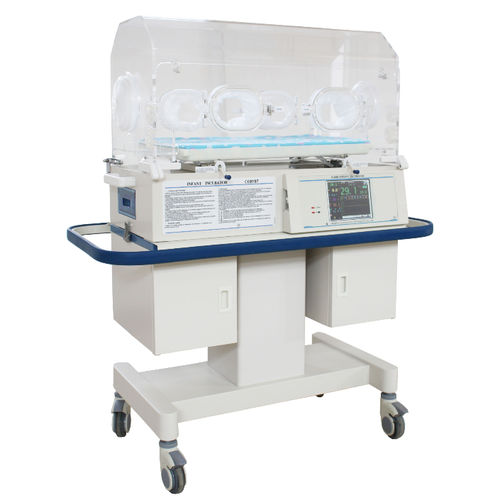

Neonatal incubator on casters B-4000
with monitorwith phototherapy lampwith storage compartment

neonatal incubator on casters
neonatal incubator on casters
Add to favorites
Compare this product


Characteristics

Features
on casters
Options
with monitor, with phototherapy lamp, with storage compartment

Description

Product feature: ● LCD display screen, easily setting, clear and intuitive; ● Air temperature display and servo control; ● Skin temperature display and servo control, double skin temperature sensor; ● Humidity display and servo control; ● Display time and heater power; ● 24 hours Parametric trend diagram display; ● Audible & Visual Alarms: power failure, sensor failure, higher & lower temp, air & skin temperature override, fan failure, low water level, system failure; ● >37℃ Preset Mode: power failure reset memory,alarm silence, self-test function; ● Hood with single slope, big front door, 6 access ports, 4 tube grommet; ● 2 Storage cabinets, Protective guard rail, IV poles; ● RS-232 Output Connector (use for network system); ● Optional oxygen concentration measure system; 1 . Air temperature: Air temperature display range: 0℃-60℃; Air temperature control range: 20.0℃-37.0℃, 37.1℃-39.0℃ Air temperature accuracy: ≤±0.3℃; Air temperature deviation alarm: ±3.0℃. 2 . Skin temperature: Skin temperature display range: 0℃-60℃; Skin temperature control range: 20.0℃-37.0℃, 37.1℃-38.0℃; Skin temperature accuracy :≤±0.3℃; Skin temperature deviation alarm: ±1.0℃. 3. Humidity Humidity display range: 0%--99%RH; Humidity control range: 30%--95%; Humidity control accuracy: (10% - 90% at 20 - 40℃)±5%RH. 4. Oxygen concentration (Optional) Oxygen concentration display range: 18%-99% Oxygen concentration display accuracy: 2% Others: Temperature fluctuation: ≤0.5℃ Mattress temperature uniformity: ≤0.8℃ Temperature rise time: ≤45 min Noise level within hood environment: ≤45dB Mattress tray Max. load 5kg Transfusion pole Max. load 2kg Cabinet Max. load 6kg
