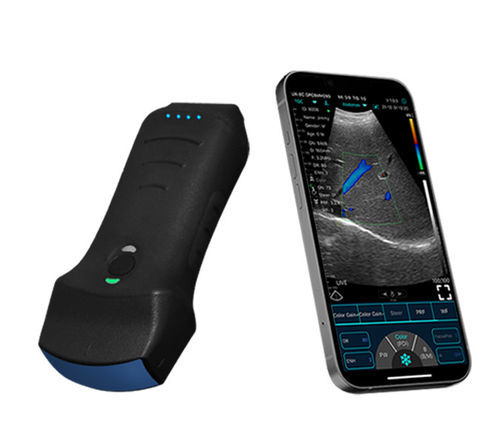

Linear-array ultrasound transducer C10TX

phased-arrayconvex-arrayvascular

Product overview
Newest C10TX wireless ultrasound scanner with dual probe combining convex, linear and cardiac heads for comprehensive point‑of‑care examinations. Compatible with Android, iOS and Windows devices via WiFi or USB. IP68 rated for protected use across clinical environments.

Key features

• Dual 128‑element 3‑in‑1 probe (convex + linear + cardiac)
• Lightweight handheld design, approx. 186 g for easy portability
• Multiple imaging modes: B, B+B, B/M, Color, PW, PDI, B+Color+PW
• Wired (USB) and wireless (built‑in WiFi) connectivity; supports operation while charging
• Wireless charging supported; battery replaceable by qualified engineer

Applications

• Abdomen, Obstetrics & Gynecology, Cardiac, Urology, Kidney, Lung
• Thyroid, Small parts, Pediatrics, Vascular, Carotid, Breast, MSK, Nerve
• Point‑of‑care cardiac assessment (chamber size, myocardial motion, valve morphology), vascular flow analysis and superficial neurological lesion evaluation with linear array

Specification summary
Probe: Wireless dual‑head (convex + linear + cardiac) probe
Elements: Dual 128 elements
Frequency bands: 3.2/5 MHz , 7.5/10 MHz , 2.5/5 MHz
Imaging depth examples: Convex 90–305 mm; Linear 20–100 mm; Cardiac 90–160 mm
Presets: Abdomen, GYN, OB, Cardiac, Urology, Kidney, Lung, Thyroid, Small parts, Pediatrics, Vascular, Carotid, Breast, MSK, Nerve, Aesthetics, Vessel Flow, User1, User2
Host compatibility: Android / iOS / Windows tablets, smartphones, PC
Connection: Built‑in WiFi (802.11g/20MHz/5G/450Mbps) & USB
Software adjustable parameters: Gain, Depth, Enhancement, Dynamic range, Frequency, Focus position, PRF, WF, Mode, 8‑point TGC, Biopsy, Annotate, Page navigation
Measurements: Length, Area/Circumference, Angle, Trace; Obstetric fetal measures (CRL, BPD, GS, FL, HC, AC), EFW; Cardiac (LVIDd/LVIDs, EF, SV), B+M heart rate, B+PW velocity/S‑D; Automatic vessel flow: PS, ED, TAMAX, TAMEAN, PI, RI, S/D, Diameter, Flow Length
Playback frames: optional 100 / 200 / 500 / 1000
Display modes: B, B+B, B/M, Color, PW, PDI, B+Color+PW
Gray scale: 256 levels
Frame rate: 24 s/f
Gain range: 40–110 dB
Languages: Chinese, Ukrainian, German, English, Russian, French, Italian, Spanish, Portuguese (Brazil)
Battery: 1 × 2800 mAh lithium; ~4 h operation, ~72 h standby; replaceable by engineer
Charger: Wireless charger supported
Waterproof rating: IP68
Cooling coating: built‑in

Features highlights

• Designed for abdominal, cardiac, musculoskeletal and nerve imaging at point of care
• Provides structural and functional cardiac assessment: chamber dimensions, myocardial motion and valve morphology
• Linear head for high‑resolution evaluation of superficial structures and neurological lesions

Technical specifications

• Model: C10TX
• Probe type: Wireless dual‑head (convex + linear + cardiac)
• Elements: Dual 128 elements
• Frequency bands: 2.5/5 MHz; 3.2/5 MHz; 7.5/10 MHz
• Imaging depths (examples): Convex 90–305 mm; Linear 20–100 mm; Cardiac 90–160 mm
• Imaging modes: B, B+B, B/M, Color, PW, PDI, B+Color+PW
• Connectivity: Built‑in WiFi (802.11g/20MHz/5G/450Mbps) and USB
• Host compatibility: Android, iOS, Windows tablets, smartphones, PC
• Software controls: Gain, Depth, Enhancement, Dynamic range, Frequency, FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annotate, Page navigation
• Measurement tools: Length, Area/Circumference, Angle, Trace; obstetric & fetal; cardiac and Doppler vessel flow parameters
• Playback frames: 100 / 200 / 500 / 1000 (optional)
• Gray scale: 256 levels
• Frame rate: 24 s/f
• Gain: 40–110 dB
• Battery: 1 × 2800 mAh lithium, ~4 h working, ~72 h standby; replaceable by engineer
• Charging: Wireless charger supported; supports working while charging
• Weight: approx. 186 g
• Waterproof rating: IP68
• Cooling: Built‑in cooling coating
