Linear-array ultrasound transducer C10MB Pro

mammarymusculoskeletalvascular

Overview

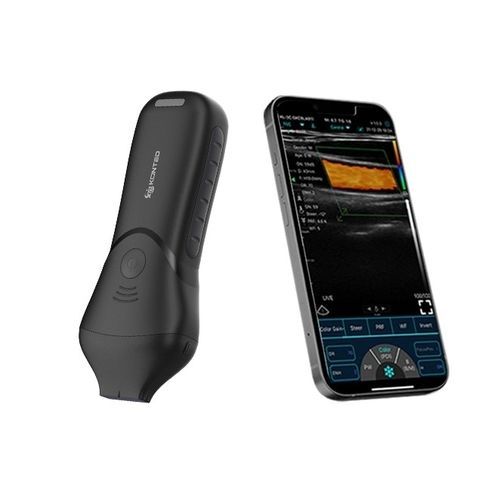

The C10MB Pro is a handheld high-frequency linear array wireless ultrasound probe designed for facial aesthetics and small-part imaging. Model: C10MB Pro. It combines USB and Wi‑Fi connectivity with a dual-battery system and IP68 ingress protection to support portable clinical workflows.

Key features

• High-frequency linear array: 16/20 MHz for shallow, high-resolution imaging.
• Selectable scan depth: 10 / 20 / 30 / 40 mm for superficial and small-part assessment.
• Lightweight, compact form factor (151 × 62 × 30 mm; 223 g) for handheld use.
• Multiple imaging modes: B, B+B, B+M, Color, PW, PDI; color Doppler supported.
• Dual connectivity: Wi‑Fi (802.11n 2.4G/5G) and USB Type‑C; supports wireless charging and operation while charging.
• Waterproof to IP68 and anti-slip 4-sided design for clinical environments.

Technical specifications

• Model: C10MB Pro
• Probe type: High-frequency linear array (16/20 MHz)
• Elements: 192; Channels: 64
• Scan depth: 10–40 mm (selectable 10/20/30/40 mm)
• Dimensions: 151 × 62 × 30 mm; Weight: 223 g
• Display modes: B, B+B, B+M, Color, PW, PDI; Frame rate: 18–24 F/s
• Image storage: JPEG, MP4, DICOM; Clip loop: up to 1000 frames
• DR: 40–110 dB; Built-in cooling coating

Clinical applications

• Facial aesthetics: superficial soft-tissue imaging, filler placement guidance.
• Small parts and superficial structures: thyroid, breast, nerves, vascular access.
• MSK: superficial tendon and nerve evaluation in point-of-care settings.

Connectivity, battery & compatibility

• Connection: Wi‑Fi (802.11n, 2.4G/5G) and USB Type‑C; supports Windows, Android and iOS.
• Battery: built-in 4400 mAh lithium battery; continuous scanning ≈4 h; standby ≈72 h; recharge ≈3 h; supports operation while charging and wireless charging.
• Measurements & presets: multiple clinical presets (Aesthetics, Thyroid, SmallParts, Vascular, MSK, etc.); B, B+M, B+PW measurement tools; DICOM support.
