Linear-array ultrasound transducer C10H

pediatricsmall partsmammary

Product overview

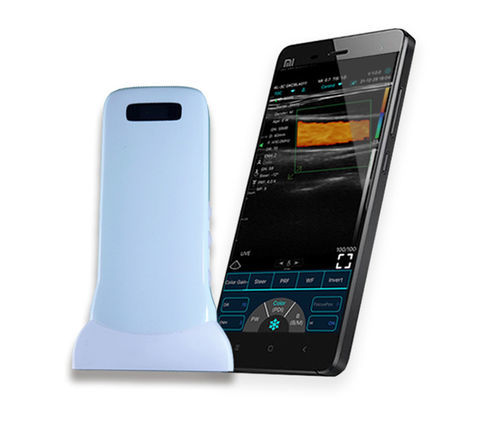

The C10H is a wireless color superficial super-width linear ultrasound probe for high-resolution imaging of superficial structures and small parts. It features a 256-element array, operating frequency 7.5–10 MHz and selectable depths 20 / 40 / 60 / 100 mm. Designed for clinical point-of-care, outpatient and bedside examinations with multi-platform compatibility (iOS/Android/Windows) via WiFi.

Key features

• Multi-platform connectivity: native support for iOS, Android and Windows devices; WiFi primary connection, USB optional.
• Wireless and portable: compact form factor, weight approx. 200–240 g, built-in replaceable 4200 mAh battery with wireless charging.
• High-definition imaging: 256 elements, 4-level image optimization, color and PW modalities for superficial vascular and soft-tissue assessment.
• Clinical presets and measurements: presets for thyroid, breast, MSK, vascular, carotid, pediatrics, nerve and user-configurable modes.

Technical specifications

• Model: C10H
• Probe type: Wireless super-width linear probe (L80)
• Elements: 256
• Frequency: 7.5–10 MHz
• Depth options: 20 / 40 / 60 / 100 mm
• Presets: Thyroid, Small parts, Pediatrics, Vascular, Carotid, Breast, MSK, Nerve, Aesthetics, User1, User2
• Host compatibility: iOS, Android, Windows (tablet, smartphone, PC)
• Connection: Built-in WiFi (802.11g/20MHz/5G/450 Mbps), USB optional
• Software adjustable parameters: GN (Gain), D (Depth), ENH (Enhancement), DR (Dynamic range), F (Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annotation
• Measurements: B (Length, Area, Circumference, Angle, Trace, Distance); B+M (Heart rate, Time, Distance); B+PW (Velocity, Heart rate(2), S/D, Depth)
• Playback frames: 100 / 200 / 500 / 1000 (optional)
• Display modes: B, 2B, B+M, Color, PW, PDI
• Channels: 32
• Frame rate: 24 s/f
• Gain range: 40–110 dB
• Languages: Chinese, Ukrainian, German, English, Russian, French, Italian, Spanish, Portuguese (Brazil)
• Power: Built-in 4200 mAh battery (replaceable)
• Battery life: ~3 hours working, ~12 hours standby
• Charger: Wireless charger included; USB charging optional

Clinical applications

• Superficial organ imaging: thyroid, breast, small parts.
• Musculoskeletal (MSK) and peripheral nerve assessment.
• Vascular and carotid studies with color and PW modes.
• Pediatrics and neonatal hip screening.
• Point-of-care diagnostics, outpatient clinics and telemedicine workflows.

Included / options

• Standard delivery: probe, wireless charger, user manual, basic software.
• Optional accessories: USB adapter, additional batteries, carrying case, advanced analysis software.
• Software supports multiple languages and adjustable measurement packages for clinical workflows.
