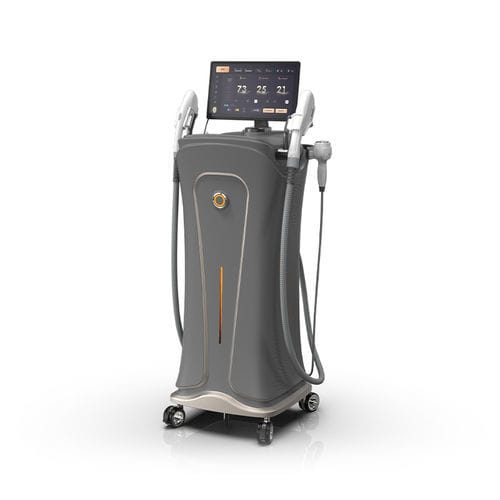

Vascular lesion treatment DPL system DPL+NIR

hair removalskin rejuvenationpigmented lesion treatment

Product overview
DermaPulse integrates Dye Pulsed Light (DPL) and Near-Infrared (NIR) in a single clinical platform to combine targeted photothermolysis with deep dermal thermal remodeling. The system is designed for multi-indication dermatology use including skin tone correction, lesion reduction and skin tightening.

Dual-Modality Technological Framework
Precision DPL: interchangeable 10-filter handpiece covering 400–950 nm and five replaceable spot sizes (including a Focus Array Lens) for selective targeting of chromophores such as melanin and hemoglobin.
NIR dermal remodeling: 100W NIR module delivering deep dermal penetration to induce immediate collagen contraction and stimulate long-term neocollagenesis for improved laxity and contour.

Key benefits

• Skin tone correction: evens complexion and brightens dull skin.
• Spot reduction: reduces freckles, age spots and post-acne marks.
• Redness management: addresses rosacea and superficial telangiectasias.
• Hair reduction: suitable protocols for multiple skin and hair types.
• Skin tightening: non-invasive lift and improvement of facial contours.
• Pore refinement: reduces appearance of enlarged pores.
• Texture and hydration: improves skin smoothness and radiance.
• Anti-aging support: promotes cell renewal and collagen remodeling.

Advantages

• DPL + NIR synergy: combined modalities for surface and deep tissue treatment in one device.
• HD skin & hair analyzer: 1080P probe with RGB, polarized and UV illumination and automatic image storage.
• Water-free cooling handpiece: targeted -5°C ice-massage capability for improved patient comfort.
• Smart mobile control: remote power, parameter adjustment and patient profile management via smartphone.
• 15.6" HD Android screen: thin-bezel interface for streamlined clinical workflow.
• Aerospace-grade power supply: enhanced electrical stability and extended service life.

SPECIFICATIONS (table)
Power — 4000W
DPL Output Power — 2000W
NIR Output Power — 100W
Screen Size — 15.6-inch
DPL Energy — 1–15 J/cm2
DPL Pulse Width — 1–10 ms
DPL Handpiece Filters — standard and optional bands covering 400–950 nm (10-filter system)
Frequency — 1–10 Hz
NIR Spot Size — 40 × 10 mm
NIR Energy — 20–50 W
Cooling Temperature — down to -30°C
Voltage — AC220V±10% 10A 50Hz or 110V±10% 10A 60Hz

Technical specifications

• Power: 4000W
• DPL output: 2000W
• NIR output: 100W
• Screen: 15.6-inch HD Android
• DPL energy range: 1–15 J/cm²
• DPL pulse width: 1–10 ms
• Filter coverage: 400–950 nm (standard and optional sets)
• Frequency: 1–10 Hz
• NIR spot: 40 × 10 mm
• NIR power: 20–50 W
• Cooling: down to -30°C
• Voltage options: AC220V±10% 10A 50Hz or 110V±10% 10A 60Hz
