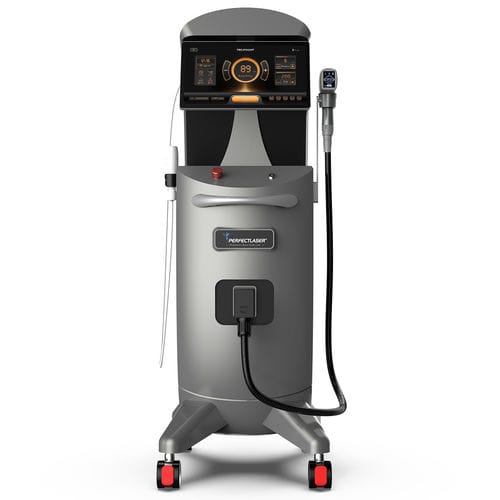

Hair removal laser Z890G

aesthetic medicinesapphirediode

Key Features

• Crystal‑Free Optical Path: Hollow copper‑gold‑plated light guides replace quartz crystals to eliminate energy loss, prevent aging, reduce handpiece weight by approximately 40%, and require no routine crystal maintenance.
• 100% Energy Consistency: Advanced light shaping delivers full energy from the sapphire tip across interchangeable spot sizes with no drop‑off or hot spots.
• AI Intelligent Skin Analysis: Integrated AI detects skin tone and hair density automatically and recommends optimal fluence and pulse width for safe treatments across Fitzpatrick types I–VI.
• Smart Handpiece with 2‑inch Display: Magnetic handpieces include a high‑resolution, ultra‑sensitive touchscreen showing real‑time energy, shot count, and tip temperature.
• Sustained −15°C Cooling: Internal sensor maintains a constant sapphire tip temperature to increase patient comfort and reduce need for topical anesthetics.
• Powerful & Durable Core: US‑imported laser bars deliver stable 1200W output and support 755/808/940/1064nm wavelengths for hair removal and additional indications.
• High Reliability: Engineered for an expected lifespan of 100 million shots using industrial‑grade components.

Clinical Performance & Solutions

• Addresses crystal degradation and energy inconsistency: Non‑crystal design ensures stable energy output without crystal replacement or calibration drift.
• Reduces operator fatigue & workflow bottlenecks: Ultra‑light magnetic handpieces (approx. 40% lighter) with quick‑swap attachment and auto spot‑size recognition streamline procedures.
• Minimizes patient discomfort: Continuous −15°C tip cooling combined with AI‑optimized pulses reduces pain and the need for topical anesthetics.
• Increases treatment versatility: Four wavelengths in one platform treat a wide range of indications and all skin types (Fitzpatrick I–VI).

Technology & Workflow

• Non‑Crystal Optical Path: Hollow copper‑gold‑plated light guides conduct laser energy with minimal loss and no optical degradation over time.
• AI Parameter Recommendation: Built‑in AI skin analyzer assesses skin type and hair density to auto‑set fluence and pulse width, reducing operator guesswork.
• Smart Handpiece Synchronization: 2‑inch HD touchscreen on the handpiece mirrors the main interface and displays critical treatment data in real time.
• Dynamic Thermal Control: Internal temperature sensor continuously monitors the sapphire tip and adjusts cooling to maintain −15°C during high‑frequency pulsing.
• Magnetic Quick‑Change System: Magnetic handpiece locking with instant recognition and automatic loading of energy limits and spot size profile.

Technical Parameters
Laser Type: 808 Diode Laser
Handle Power: 1200W
Laser Wavelengths: 4 Wavelengths (755/808/940/1064nm)
Treatment Spot Sizes: 12mm / 24mm / 12×36mm (interchangeable)
Pulse Width: 200 ms
Operating Temperature: Handle tip −15°C; Device environment 5–40°C
Handle Screen: 2‑inch HD smart touchscreen
Host Screen: 15.6‑inch industrial touch screen
Laser Bar: Imported from COHERENT (USA)
Power Supply: 600W MEAN WELL medical‑grade switching PSU (Taiwan)
Refrigeration System: 600W high‑power compressor + diaphragm self‑priming pump
Shot Lifespan: 100 million shots
Operating Frequency: 110 Hz
Handle Design: Magnetic head replacement, non‑crystal gold‑plated light guides
Data Transmission: Real‑time synchronization between handle and host screen
Upgrade Method: USB interface for online upgrade
Additional Functions: AI skin detection, energy calibration, customer management, multilingual interface


Target Clientele

• High‑volume hair removal clinics and medical spas
• Dermatology and aesthetic medicine centers
• Beauty salons upgrading to advanced laser services
• Mobile aesthetic practitioners benefiting from a lightweight handpiece
• Laser technician training academies

Competitive Advantages

• Zero crystal maintenance cost — no recurring crystal replacement or performance decay.
• Superior ergonomics — approx. 40% lighter handpiece with durable, UV‑injection‑molded shell.
• Premium user interface — 2‑inch handpiece display provides real‑time control and data to operators.
• Global readiness — wide voltage compatibility and international certifications (CE; FDA pending).
• Field‑upgradable via USB for future AI and software features.

Technical Specifications

• Model: Z890G
• Laser type: 808 Diode Laser (multi‑wavelength platform supporting 755/808/940/1064nm)
• Handle power: 1200W
• Spot sizes: 12mm; 24mm; 12×36mm (interchangeable)
• Pulse width: 200 ms
• Operating frequency: 110 Hz
• Cooling: Handpiece tip maintained at −15°C via internal sensor; device environment 5–40°C
• Handpiece display: 2‑inch HD touchscreen (magnetic handpiece)
• Host display: 15.6‑inch industrial touch screen
• Laser bar source: COHERENT (USA)
• Power supply: 600W MEAN WELL medical‑grade switching PSU (Taiwan)
• Refrigeration: 600W compressor + diaphragm self‑priming pump
• Shot lifespan: 100 million shots
• Data sync: Real‑time synchronization between handpiece and host screen
• Upgrade: USB online upgrade
• Functions: AI skin detection, energy calibration, customer management, multilingual interface
