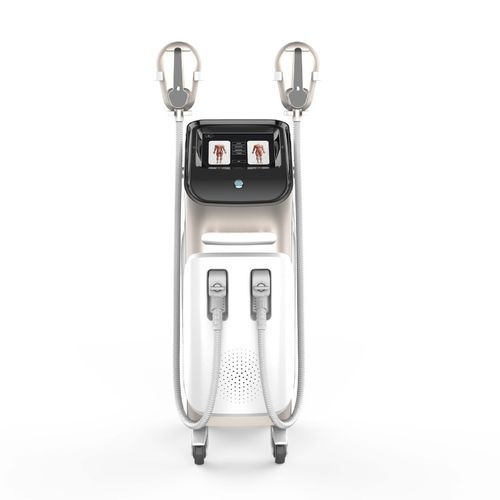

Magnetic pulse body contouring unit Magshape

muscle electrical stimulation body contouring unit

Overview
Magshape 2 is an EMS body sculpting device that uses focused electromagnetic field technology to activate motor neurons and induce direct muscle contractions. A 30-minute protocol can generate up to 30,000 high-frequency, high-intensity contractions per session to increase muscle density and volume while promoting localized fat consumption and adipocyte apoptosis to reduce fat thickness.

Technology
The Magshape electromagnetic field produces action potentials in motor nerve cells, producing supramaximal muscle contractions. The treatment enables intense contractions without voluntary effort, allowing procedures to be performed with the patient supine and offering modes tailored for clinical and professional use.

Indications
Body contouring, muscle strengthening, localized fat reduction, shaping of abdominal (vest) lines and buttock lifting.

Key Effects / Benefits

• BUILD MUSCLE: Up to 30,000 contractions per 30-minute session to increase muscle density and volume.
• REDUCE FAT: High-frequency, high-intensity contractions raise local energy demand, consuming adjacent adipocytes and potentially inducing natural apoptosis to reduce subcutaneous fat thickness.
• MUSCLE SCULPT: Targets abdominal, gluteal and oblique muscles to define vest lines, lift hips and shape lateral contours.

Applicators

• Normal handle: abdomen, buttocks, thighs.
• Arm handle: arms, thighs, legs.
• Pelvic floor handle: pelvic floor treatments.

Before & After
Documented before-and-after images can be used to illustrate typical outcomes where available.

Notes
Multiple treatment modes are available to adapt intensity for different clinical or professional protocols. The system includes dedicated treatment handles and a touchscreen interface for protocol selection.

Specifications / Technical specifications

• Magnetic wave (energy): 0-7 tesla
• Voltage: 220V / 110V
• Output power: 2600W
• Frequency: F1: 1-10Hz; F2: 1-100Hz
• Pulse width: 300 µs
• Mode: model-I (Sport mode); model-II (Gentle mode); model-III (Professional mode)
• Screen: 10.4 inch
• Treatment handle: I-B1, II-B2
• Machine size: 1200mm × 360mm × 520mm
• Package size: 1150mm × 540mm × 840mm
• Net weight: 60 kg
• Gross weight: 91 kg
