Plasma skin rejuvenation unit PLAZone

hand-held

Overview
Plazone Medical Multi-Plasma Pen combines jet plasma, cold plasma, and lifting in one device. A top choice for non-invasive skin tightening, lifting, and spot removal.

Treatment principle
At Skin Deep Clinic, the medical-grade Plasma pen device produces a plasma flash when placed very close to the skin surface. This flash causes tiny carbon spots on the epidermis and immediate shrinkage and tightening of the skin. Over the following 6-8 weeks as full healing occurs, new collagen is produced naturally by fibroblast cells as they divide to repair the tiny spots on the skin, further improving the effects of the skin rejuvenation treatment. This long-lasting, medical-grade treatment is completely non-invasive without any surgery or anesthetic injections required.

Functions / Indications

• Non-surgical upper eyelid lift (Blepharoplasty)
• Non-surgical lower eyelid tightening
• Removal of lip lines
• Removal of wrinkles
• Reducing sun spots and pigmentation and tightening of loose skin
• Non-invasive lifting of neck (turkey neck)
• Tightening jaw line
• Spot/mole/freckle removal (small superficial lesions)

Treatment heads / Modes

• Arc head: hot plasma for spot and mole removal; stimulates skin regeneration and repair
• Lifting head: cold plasma to activate skin cells, promote collagen synthesis, and improve elasticity
• Permeating head: steam plasma, promotes penetration and diffusion of substances
• Ozone head: ozone plasma for disinfection, sterilization, skin regeneration and tint effect

Safe notifications / Aftercare

• After the procedure, avoid direct sunlight and spa treatments for 3 days.
• If a callus forms, take care not to remove it prematurely.
• Allow callus to fall off naturally; forcibly removing it may leave a scar.
• For deep lesions, perform multiple sessions over time; do not attempt to finish deep lesions in a single session.
• When using the probe, keep it moving; do not let it stay in one place too long.
• When using the tip, operate with short multiple applications; avoid long continuous contact in one spot.

Operational guidance / Frequency notes
Frequency and energy settings affect perceived thermal effect: higher frequency with lower energy tends to be gentler and easier to control; lower frequency with higher energy produces stronger single pulses. For delicate areas (eg. under eyes), start with low energy and short contact times and practice appropriate hand speed to avoid pits or excessive carbonization.

Mini Spot Mole and Freckle Removal Pen — summary (portable variant)
The mini device is described as a portable ionization-based pen for spot removal with adjustable power levels and rechargeable functionality. Key points provided in product text: lightweight (~100 g for pen), box size and total weight referenced (~21.4 x 10.8 x 4.6 cm, total 250 g), three adjustable power levels for different spot sizes and depths, USB rechargeable, claimed continuous operation over five hours on a single charge (manufacturer-stated). Prior to use disinfect the needle tip and the treated area.

Caractéristiques / spécifications techniques

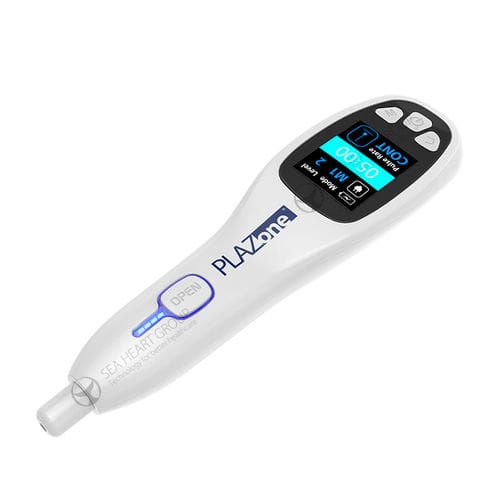

• Product Name: PLAZone Plasma Pen
• Display: 2.0-inch full-color IPS
• Output Frequency: 70 kHz
• Output Level: Steps 1~3/5 (Analog wheel type)
• Output Mode: Continuous, Pulse, Ozone
• Pulse Mode Frequency: 10, 20, 40, 100, 200 Hz
• Treatment Tips: Arc Tip, Lifting Tip, Permeating Tip, Ozone Tip
• Power (battery): 7.4 V, 800 mAh
• Charger: 9 V DC / 1000 mA output; AC100~240 V (50/60 Hz) input
• Life Time (battery): Fully charged, Max 3 hours
• Power Consumption: Max. 12 W
• Material: Body - PC/ABS Resin
