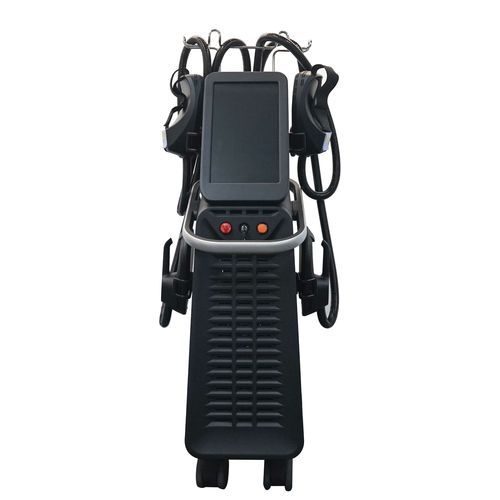

Muscle electrical stimulation body contouring unit SM-20

Description
Device for weight loss, body slimming and sculpting, and RF skin tightening. The SEA HEART MagiSculpt SM-20 is a 4-handle EMS body contouring system designed for clinical aesthetic treatments, combining high magnetic output with an air-cooled design for continuous operation.

Key information

• Treatment course: 4 sessions; 30 minutes per session; recommended ≥2 sessions/week, spaced 2–3 days apart over 2 consecutive weeks.
• Clinical claims: +35% muscle gain; -50% fat reduction (reported in manufacturer data).

Features

• Power supply: single-handle configuration up to 1500 W; dual power supply up to 3000 W.
• Measured maximum magnetic field strength: 3.0 T.
• 4-handle simultaneous output up to 2.5 T; maximum output frequency 50 Hz.
• Handle coil diameter: 140 mm for a large treatment area.
• Handle inductance: 40 μH.
• Pulse peak current capacity: up to 4200 A.
• Air-cooled design allowing dense copper winding for improved voltage/current performance and extended component life.
• High-frequency fast SCR components (imported from Germany).
• Handle wiring: gold-tin alloy plated multi-strand high-purity copper.

Features & Advantages

• Designed for local markets with competitive product and pricing strategy.
• Air cooling supports long treatment sessions without thermal throttling.
• Dual-control, dual-circuit magnetic power supply (one circuit per handle) increases output power and service life; combined output up to 3000 W.

Learn More
System combines high magnetic field output, precise handle design and robust cooling to support clinical body contouring, muscle strengthening and RF skin tightening protocols.

Technical specifications

• Model: SM-20
• Power (single-handle): up to 1500 W
• Power (dual power supply): up to 3000 W
• Maximum measured magnetic field strength: 3.0 T
• 4-handle simultaneous output: up to 2.5 T
• Maximum output frequency: 50 Hz
• Handle coil diameter: 140 mm
• Handle inductance: 40 μH
• Pulse peak current capacity: up to 4200 A
• Cooling: air-cooled system
• Control: dual-control dual-circuit magnetic power supply available
• Handle internal wiring: gold-tin alloy plated multi-strand high-purity copper wire
• Power components: high-frequency fast SCR (imported)
• Treatment protocol: 4 sessions, 30 minutes each, ≥2 sessions/week, spaced 2–3 days apart over 2 weeks
