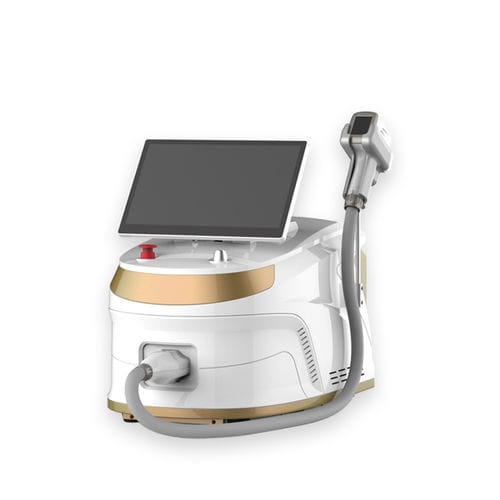

Hair removal laser ALD1-A1

diodetabletop

Product overview
Diode laser hair removal system ALD1-A2 offering selectable wavelength configurations (808nm; 755nm+808nm+1064nm; 755nm+808nm+940nm+1064nm) and a maximum laser output of 600W. Laser handpiece includes a built-in intelligent screen for treatment control. Spot sizes: 12mm x 12mm and φ8mm.

Treatment theory
The diode laser penetrates the skin to target hair follicle roots. Laser energy is absorbed by follicular tissue, causing controlled damage to the follicle while preserving surrounding tissue. Diode wavelengths provide effective hair reduction with reduced discomfort compared with some alternative laser types.

Application
Indicated for permanent reduction of unwanted hair on the face, body, axillae and limbs. Suitable for a wide range of skin and hair types. Typical treatment protocol achieves significant permanent hair reduction after 3–5 courses, depending on patient parameters.

Key features

• Selectable wavelength configurations to match hair color and skin phototype
• High maximum output power (600W) for treatment efficiency
• Handpiece with integrated intelligent screen for simplified operation
• Two spot sizes (12mm x 12mm and φ8mm) for large areas and precision zones
• Designed for use in medical and aesthetic clinics

Color / Packing / Weight

• Available colors: Silver / White / Gold / Blue
• Packing size: 67 x 61 x 51 cm
• Packing weight: 38 kg

Specifications

• Model: ALD1-A2
• Laser type: Diode laser
• Wavelength options: 808nm; 755nm+808nm+1064nm (triple); 755nm+808nm+940nm+1064nm (four)
• Maximum laser output power: 600W
• Handle features: Built-in intelligent screen
• Spot sizes: 12mm x 12mm and φ8mm
• Suitable skin/hair types: All skin and hair types
• Expected treatment course for permanent reduction: 3–5 courses
• Available colors: Silver, White, Gold, Blue
• Packing dimensions: 67 x 61 x 51 cm
• Packing weight: 38 kg
