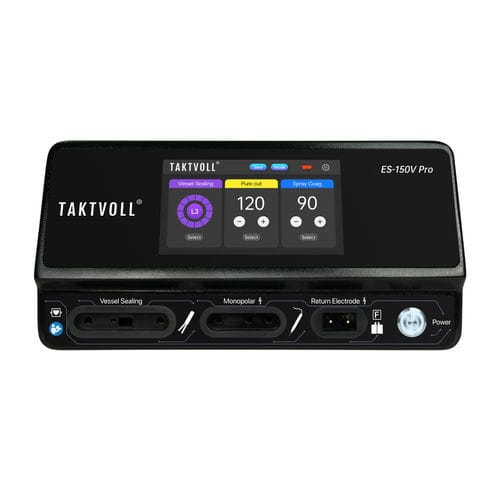

Vessel-sealing electrosurgical unit ES-150V Pro

bipolar coagulationmonopolar cuttingcoagulation

Short Description
The ES-150V Pro is an electrosurgical system with vessel sealing designed for veterinary use. Featuring a full glass panel and a colorful LCD touch-screen, the device is compact, portable and designed for intuitive operation. It supports both laparoscopic and open procedures and can seal vessels up to 7 mm in diameter with intelligent assessment of sealing effect.

Features

• Full glass panel design
• Colorful LCD touch-screen interface
• Integrated melody sound effects for status feedback
• Compact and portable form factor for flexible use
• Intelligent safety and sealing-effect assessment
• Suitable for laparoscopic and open surgeries

Cutting Modes

• Pure Cut: Provides clean and precise cutting of tissue.
• Blend 1: Slightly slower cutting with minimal hemostasis (70% cutting, 30% coagulation).
• Blend 2: Slightly slower cutting with enhanced hemostasis (50% cutting, 50% coagulation).

Coagulation Modes

• Spray Coagulation: Non-contact, efficient surface coagulation with shallow penetration; tissue removal via evaporation using knife- or ball-shaped electrodes; minimizes depth of tissue damage.
• Forced Coagulation: Non-contact coagulation with lower peak output voltage than spray; suitable for small-area coagulation, moderate thermal penetration, rapid effective coagulation with minimal carbonization.

Vessel Sealing Mode

• Vessel Sealing: Seals blood vessels and tissue bundles up to 7 mm diameter without extensive dissection; enables sealing without anatomical separation for simplified and efficient workflow.

Bipolar Mode

• Standard: Suitable for most bipolar applications; maintains low voltage to prevent sparking and ensures controlled tissue coagulation, reducing carbonization and tissue adhesion.

Technical specifications

• Model: ES-150V Pro
• Product type: Electrosurgical system with vessel sealing for veterinary use
• User interface: Colorful LCD touch-screen, full glass panel
• Audio: Integrated melody sound effects
• Portability: Compact and portable
• Surgical application: Laparoscopic and open surgeries
• Vessel sealing capacity: up to 7 mm diameter
• Cutting modes: Pure Cut; Blend 1 (70% cut / 30% coagulation); Blend 2 (50% / 50%)
• Coagulation modes: Spray coagulation; Forced coagulation
• Bipolar mode: Standard bipolar application with low voltage
• Safety: Intelligent assessment of sealing effect
