Endoscopic electrode PA-210

coagulationtissuereusable

Short description:

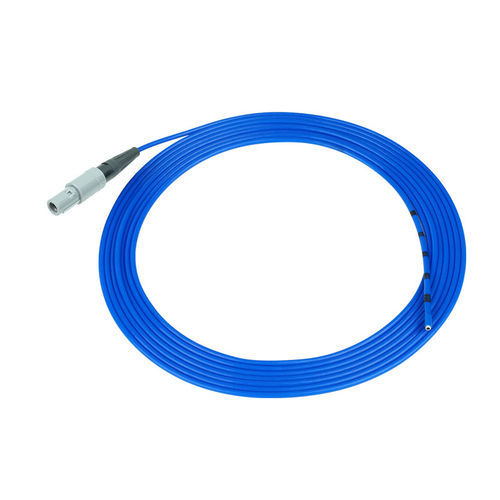

Endoscopic probe for argon plasma coagulation (APC) intended for hemostasis and tissue coagulation. Reusable, flexible probe with 2.35 mm outer diameter and 3.0 m working length, designed for kink-resistant navigation and controlled low-power arc ignition compatible with standard APC generators.

Features:

• Kink-resistant design: smooth insertion and reliable advancement through endoscope working channels (min. compatibility ≈ Ø 2.3 mm).
• Optimized arc ignition: supports low-power ignition for controlled coagulation at clinical distances (ignition capability ≈ 4.5 kV).
• Plug-and-play smart recognition: automatic instrument identification and auto-save of working parameters to streamline procedure setup.
• Built-in dual filtration: integrated filtration system to reduce contamination risk during procedures.
• Reusable: designed for multiple sterilizations; sterilize before use.

Product detail:
APC probe compatible with standard APC generators. Combines flexibility, kink resistance and controlled low-power arc ignition to support precise endoscopic coagulation and hemostasis in diagnostic and therapeutic procedures.

Technical specifications:

• Model designation: PA-210
• Outer diameter: 2.35 mm (min. working channel compatibility ≈ Ø 2.3 mm)
• Working length: 3.0 m (3000 mm)
• Type: Reusable
• Ignition capability: supports low-power arc ignition (electrical capacity ≈ 4.5 kV)
• Filtration: built-in dual filtration system
• Connection: plug-and-play smart recognition with automatic instrument identification and parameter auto-save
• Sterilization: sterilize before use
