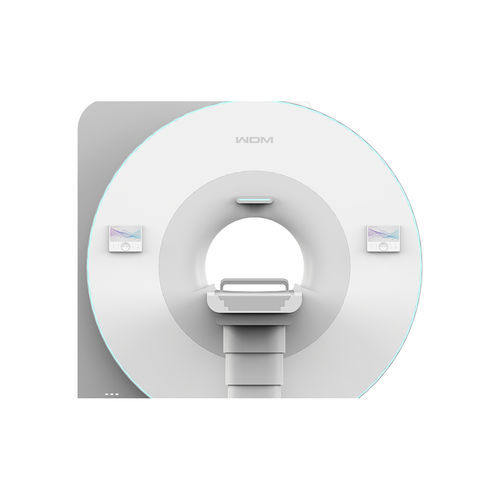

Whole-body tomography MRI system i_Field 1.5T
high-fieldwide-bore

Whole-body tomography MRI system - i_Field 1.5T - Beijing Wandong Medical Technology - high-field / wide-bore
Whole-body tomography MRI system - i_Field 1.5T - Beijing Wandong Medical Technology - high-field / wide-bore
Whole-body tomography MRI system - i_Field 1.5T - Beijing Wandong Medical Technology - high-field / wide-bore - image - 2
Whole-body tomography MRI system - i_Field 1.5T - Beijing Wandong Medical Technology - high-field / wide-bore - image - 3
Add to favorites
Compare this product

Characteristics

Application
for whole-body tomography
Field intensity
high-field
Options
wide-bore
Magnetic field (T)

1.5 T

Ring diameter (cm)

70 cm
(28 in)

Description

Product Details
  • Large-aperture Superconductive MRI

Product Advantages
  • A Spacious and Comfortable Examination Experience
  • Short Cavity with 70cm Bore Diameter
  • 175 mT/m/ms Slew Rate Gradient System
  • 16-32 Channel RF System
  • Digital Optical Fiber Transmission

Technology Platform
  • High Homogeneity Magnetic Field: Advanced magnet system with intelligent shimming technology for high homogeneity.
  • Large FOV, off-center quality images.
  • Wide range of fat saturation imaging, shortened FS sequence scan time, improved image quality.
  • Dynamic B₀ Eddy Current Compensation Technology: Real-time compensation improves fat suppression, reduces DWI image artifacts, and enhances image quality for B₀ eddy current sensitive sequences such as SWI.
  • Fully Digitized Optical Fiber Transmission: Digitalized acquisition, gradient, and RF systems use optical fiber transmission to reduce signal attenuation and isolate from external electromagnetic interference, ensuring efficient and stable transmission and improved image quality.
  • Power Sense Fast Imaging System: Integrates traditional “Sense” and AI-based compressed sensing “Power Sense” fast imaging technology to optimize acquisition mode, improve scanning speed and image quality.
  • Subsecond Intelligent Shimming Technology: Fast and precise shimming of any part/area in 1 sec., achieving magnetic field homogeneity up to 0.002ppm, minimally affected by motion artifact.
  • 24/32 Channel RF Platform: Multi-channel coil corresponds independently to the multi-channel spectrometer, with fast parallel acquisition technology to improve imaging speed.
  • Integrated Coils: Combined coils allow wide range imaging without changing coils, reducing examination time.

Clinical Solutions
  • Broader and More Comfortable: 70cm large aperture provides a comfortable examination experience for more people.
  • Neuro Imaging: Large aperture relaxes patients during scanning, alleviates claustrophobia, reduces sedation, for more effective and safer examinations.
  • Abdomen Imaging: Sufficient space allows patients to lie flat or sideways; SAR value control and uniform RF field optimization ensure qualified abdominal imaging.
  • Pelvis Imaging: Enlarged space enables pregnant women to achieve fast and accurate fetal imaging comfortably and calmly, without stressing cardiopulmonary function.
  • Spinal Imaging: Accommodates patients with spinal disorders in a comfortable position for smooth, high-quality spinal imaging.
  • Musculoskeletal Imaging: Wide space allows wrist, shoulder, or elbow to be placed closer to the magnet center for better images.
  • Mammo Imaging: Larger aperture accommodates the breast coil, allowing a more comfortable and natural posture for calm examinations.

Caractéristiques / Spécifications techniques
  • Short cavity with 70cm bore diameter
  • 175 mT/m/ms slew rate gradient system
  • 16-32 channel RF system
  • Digital optical fiber transmission
  • High homogeneity magnetic field with intelligent shimming
  • Dynamic B₀ eddy current compensation technology
  • Fully digitized acquisition, gradient, and RF systems
  • Power Sense fast imaging system (AI-based compressed sensing)
  • Subsecond intelligent shimming (up to 0.002ppm)
  • 24/32 channel RF platform
  • Integrated coils for wide range imaging
