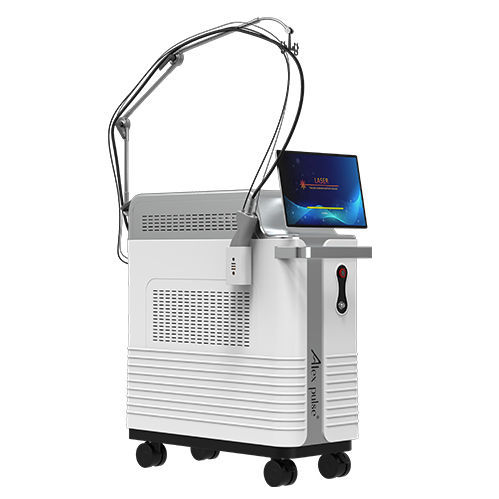

Dermatology laser CL300

hair removalalexandriteNd:YAG

Product overview
Dual-wavelength laser hair removal system combining 755 nm Alexandrite and 1064 nm Nd:YAG emissions in a synchronized, adjustable binary output. Designed for professional clinics and dermatology practices for permanent hair reduction, treatment of pigmented and vascular lesions, and wrinkle reduction.

Technology & cooling
The system uses long-pulse laser energy to selectively thermally destroy hair follicles while preserving surrounding tissue. Epidermal protection is provided by a dynamic cryogen cooling device that sprays liquid cryogen before each pulse, offering greater cooling protection than contact or air cooling and adjustable for patient comfort.

Key features

• Dual wavelengths: 1064 nm (Nd:YAG) and 755 nm (Alexandrite)
• Energy: 110 J @ 1064 nm; 60 J @ 755 nm
• Pulse width: 0.25 ms – 100 ms (adjustable)
• Repetition rate: 0.5 Hz – 10 Hz
• Output power: 5000 W for rapid coverage
• Spot sizes (standard): 3 / 12 / 16 / 18 mm; optional: 6 / 10 / 24 mm
• Indicator light: 532 nm green guide light
• Voltage: 110 V ~ 220 V, 50/60 Hz

Accessories details

• Optical fiber: imported American Fiberguide
• Class A laser rod: imported American Leko
• Xenon lamp: imported Firstlight (UK)
• Ceramic laser cavity: imported Morgan (UK)
• IGBT discharge module: imported Infineon (Germany)

Clinical benefits

• Selective thermal follicle destruction with minimized surrounding tissue damage
• Suitable for most skin types by selecting optimal wavelength
• Comfortable, low-pain procedures due to dynamic cryogen cooling
• Fast and efficient treatments reducing session time
• Reduced fiber energy loss; reported ~20% stronger output vs standard fiber

Datasheet & specifications

• Product name: Dual wavelength Alexandrite and Nd:YAG laser hair removal machine
• Manufacturer: Winkonlaser
• OEM: YES; Custom logo: YES
• Delivery lead time: 7 Days
• Wavelengths: 1064 nm (Nd:YAG) and 755 nm (Alexandrite)
• Energy: 110 J @ 1064 nm; 60 J @ 755 nm
• Pulse width: 0.25 ms – 100 ms (adjustable)
• Frequency: 0.5 Hz – 10 Hz
• Output power: 5000 W
• Spot sizes: standard 3 / 12 / 16 / 18 mm; optional 6 / 10 / 24 mm
• Indicator light: 532 nm
• Voltage: 110 V ~ 220 V, 50/60 Hz
