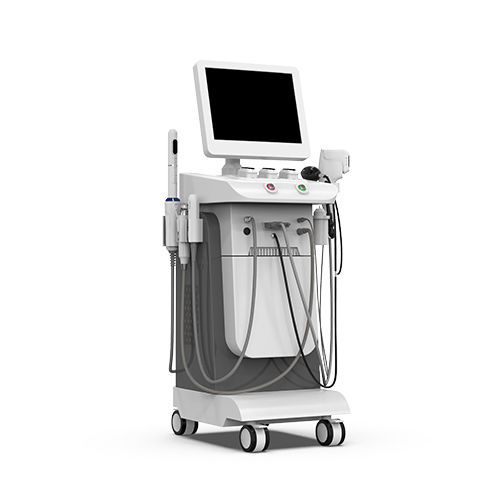

HIFU body contouring unit HU700

HIFU skin rejuvenation unittrolley-mounted

Product overview
The HU700 7D HIFU machine is a professional multi‑module workstation integrating HIFU, Liposonix, fractional microneedle RF and a vaginal tightening probe for clinical aesthetic and intimate health applications.

Key technologies

• HIFU: focused ultrasound for collagen stimulation at depths 1.5, 3.0, 4.5 mm and extended depths 6.0, 8.0, 10.0, 13.0, 16.0 mm
• Liposonix: high‑energy delivery for body contouring at ~13 mm depth
• Fractional Microneedle RF: combined microneedling and RF for texture and scar remodeling (depth 0.5–3.0 mm)
• Vaginal probe: 360° rotational probe targeting lamina propria and muscle layers

Face and neck (3D/4D HIFU)

• SMAS targeting: reaches superficial musculoaponeurotic system for lifting effects
• Indications: V‑line sculpting, double‑chin reduction, forehead lines, crow's feet, nasolabial folds
• Efficiency: 3D handle capability up to 11 lines per shot to reduce treatment time

Body contouring (Liposonix)
Liposonix module applies focused thermal energy to create cavitation and reduce localized fat in abdomen, flanks and thighs as a non‑invasive alternative to surgical liposuction.

Fractional microneedle RF

• Applications: acne scars, pore reduction, stretch marks, skin textural improvement
• Adjustable depth: precise control from 0.5 mm to 3.0 mm

Vaginal tightening and intimate health
The rotating vaginal HIFU probe delivers rapid thermal effect (reported up to ~65°C in 0.1 s) to induce collagen contraction and target mucosal and muscular layers; indications include improved lubrication and tissue tone.

FAQ

• Q: Is the treatment painful? A: Most patients report mild tingling or warmth; energy is adjustable with fine steps (0.1 J) to adapt comfort.
• Q: How long do results last? A: Typical duration 12–24 months; follow‑up at about 3 months for facial treatments is often recommended.
• Q: Downtime? A: Minimal to none; patients generally resume normal activities immediately.

Technical specifications

• Model: HU700
• Machine type: Professional 7D HIFU workstation (5‑in‑1 optional)
• Control system: 15‑inch color touchscreen
• Cartridge depths supported: 1.5 / 3.0 / 4.5 / 6.0 / 8.0 / 10.0 / 13.0 / 16.0 mm
• 3D HIFU cartridge life: ~20,000 lines (datasheet) / 25,000 shots indicated on some modes
• 4D HIFU cartridge life: ~64,000 lines (datasheet) / up to 100,000 shots indicated on some modes
• 5D shots indication: ~10,000 shots per cartridge (as reported)
• Frequency: 4 MHz
• Energy output: 0.2 J – 2.0 J (adjustable, step 0.1 J)
• Handles/applicators: 3 types (including 3D handle up to 11 lines/shot)
• Voltage: 110 V–220 V, 50/60 Hz
