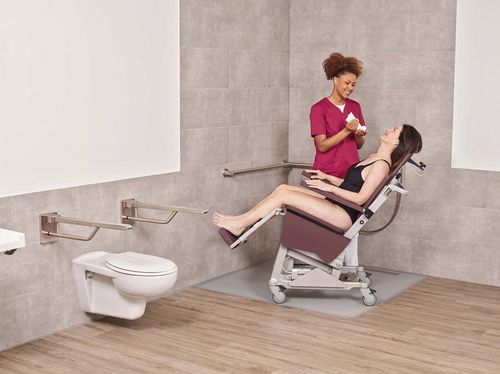

Shower chair with armrests MILO

on casterswith footrestwith backrest

Description
Designed for professional care environments, the MILO shower chair combines ergonomic seating and an electrically adjustable tilt to improve resident comfort and caregiver ergonomics. The chair is built on a stable aluminium frame and is available in two colours. Soft PUR-foam padding and an adjustable 3D headrest ensure safe, comfortable transfers and showering.

Key features

• Stable aluminium construction
• High safety and stability
• Ergonomically shaped seat and back cushions
• 3D headrest
• Electric continuous tilt function
• Soft PUR-foam upholstery

Mobility group compatibility

• BEKA mobility group 2 compatible
• BEKA mobility group 3 compatible
• BEKA mobility group 4 compatible

AR model
The AR function provides a realistic impression of the product and allows visualization in a real context. AR design is a simplified representation: colours, textures and details may differ from the actual product.

Available options

• Separately adjustable leg-rest and foot-rest
• Safety armrests (curved)
• Two memory buttons for selecting two shower positions plus parking and cleaning modes
• XL seat and back cushions
• Basin holder
• Shower-head holder

Technical data / specifications

• Weight: approx. 60 kg
• Min. length, lowest upright position: 1145 mm
• Max. length, highest reclined position: 1490 mm
• Overall width: 600 mm (655 mm XL)
• Chassis width outside: 555 mm
• Chassis width inside: 370 mm
• Min. backrest height, lowest reclined position: 1110 mm
• Max. backrest height, highest upright position: 1560 mm
• Min. seat height: 550 mm
• Max. seat height: 750 mm
• SWL (safe working load): 150 kg
• Height adjustment: 200 mm
• Tilt function: 25°
• Standard seat and back widths: 495 mm
• Standard armrests: straight
• Standard foot-rest: central
