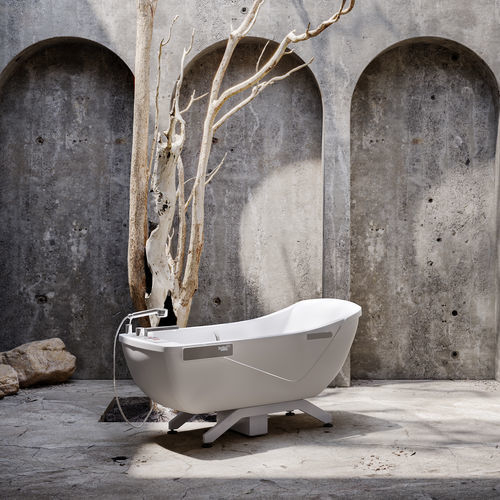

Electric medical bathtub AVERO Motion

height-adjustablewith side accesswalk-in

The AVERO Motion is a patient bathing tub designed to simplify bathing and support mobility for mobile and partially mobile residents while providing a full-size relaxing bath. The wide side-access door enables independent entry for mobile users without auxiliary lifting equipment. The tub can be tilted to place the resident quickly into warm water for immediate comfort.

Features

• Ergonomic seat and lying profile reduces risk of slipping
• Flat, edge-free door area for smooth wheelchair transfers
• Comfortable internal dimensions suitable for larger residents
• Large 98 L pre-filling volume so resident is immediately surrounded by warm water after tilting
• Fast filling: approx. 55 L/min at 3 bar; drainage 75 L/min
• Lowest entry height 490 mm; adjustable working height 810 / 1,010 mm

Augmented Reality
An AR model is available to visualise the AVERO Motion in a realistic environment. The AR view is simplified; colours, textures and small details may differ from the actual product.

Mobility group compatibility
Compatible with mobility groups 1–5. Note: compatibility with mobility group 4 requires use of a passive hoist system (e.g. CARLO / CARLO Air) or equivalent certified solution.

Technical specifications

• Tub length (entry position / tilting position): 1,760 mm / 1,908 mm
• Tub width outside (max.): 860 mm
• Tub width inside (max.): 680 mm
• Lowest entry height: 490 mm
• Working height: 810 / 1,010 mm
• Water drainage: 75 L/min
• Fast filling rate: approx. 55 L/min at 3 bar
• Maximum patient weight: 220 kg
• SWL: 350 kg
• Pre-filling volume (foot zone): 98 L
