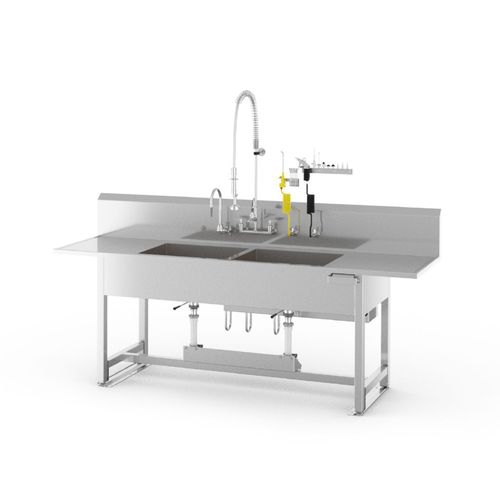

Medical sink

laboratorydecontaminationfor healthcare facility

Overview
Our full line of processing sinks is designed to support a wide range of workflows and sterile processing steps in clinical and SPD environments. Available in ergonomic, powered height-adjustable configurations, they reduce strain for staff while improving comfort and workflow efficiency. Optional pegboards and a portfolio of accessories increase organization and departmental throughput. Faucet and spray gun locations are configurable to align with specific workflow requirements.

Key benefits

• Versatile: single, double and triple basin configurations to suit varied instrument and container cleaning needs; configurable cleaning tools and workflow direction; optional pegboards and accessories for enhanced organization.
• Durable: fabricated from heavy-gauge stainless steel with seam-welded construction for long service life and resistance to vibration, distortion or sagging.
• Ergonomic: powered height-adjustable models accommodate a range of clinician heights; memory preset controls enable one-touch countertop height adjustment for multiple users.

Features

• Faucet options: up to two faucets per sink; choices include pre-rinse/gooseneck combination, gooseneck-only, and an ON/OFF knob-controlled tin-lined deionized (DI) faucet. All faucets mount to the backsplash.
• Air and water guns: coiled hoses, hooked-body design and interchangeable tips; include wall or pegboard mounting brackets; connections mounted to the backsplash.
• Drain options: standard strainers or lever-operated drains; adjustable-height sinks can be supplied with copper or PVC drain systems.
• Adjustable height control panel: compact front-mounted control panel (for adjustable-height models) enabling up to four user-settable heights for customized ergonomic positioning.
• Ultrasonic basin option: one basin may be configured as an ultrasonic cleaner; the ultrasonic power generator is located under the right-hand drain board with a simple knob for sonic on-time adjustment.

Configurations
Single Basin Processing Sink
Standard footprint: 72.5 in W x 30 in D
Custom widths available from 36 in (24 in basin) or 42 in (30 in basin) up to 120 in

Dual Basin Processing Sink
Standard footprint: 96 in W x 30 in D
Custom widths available from 58 in (24 in basins) or 70 in (30 in basins) up to 120 in

Triple Basin Processing Sink
Standard footprint: 120 in W x 30 in D
Custom widths available from 84 in (24 in basins) or 102 in (30 in basins) up to 120 in

Applications

• General instruments
• Containers
• Sterile Processing Department (SPD) items

Technical characteristics / specifications

• Product family: Processing Sinks (single, dual, triple basin configurations)
• Construction: heavy-gauge stainless steel with seam-welded components for durability and long service life
• Basin options: single, double, triple; basin nominal widths: 24 in or 30 in (configurable)
• Standard depths: 30 in D
• Standard footprints: Single 72.5 in W x 30 in D; Dual 96 in W x 30 in D; Triple 120 in W x 30 in D; custom widths up to 120 in
• Height adjustment: powered adjustable-height models available; memory presets support up to four user-set heights
• Faucets: up to two faucets; pre-rinse/gooseneck combination, gooseneck-only, and ON/OFF knob-controlled tin-lined deionized (DI) faucet; backsplash-mounted
• Air/water guns: coiled hoses, hooked body design, interchangeable tips; wall or pegboard mounting brackets; backsplash connections
• Drains: standard strainers or lever-operated drains; copper or PVC drain system options for adjustable-height sinks
• Ultrasonic option: one basin may be configured as an ultrasonic cleaner; generator located under right-hand drain board with adjustable sonic on-time control
• Accessories: optional pegboards and a portfolio of accessories for organization and workflow optimization
• Customization: faucet and spray gun locations configurable to match workflow direction
