Medical autoclave TTA 23dentalbenchtopcompact
Add to favorites
Compare this product
Characteristics
- Applications
- medical, dental
- Configuration
- benchtop, compact, built-in
- Function
- automatic, programmable
- Sterilization chamber material
- stainless steel
- Options
- with touchscreen, Wi-Fi
- Capacity
3.5 l, 5 l
(0.92 gal, 1.32 gal)- Carrying capacity
0.2 kg, 0.6 kg, 2 kg, 6 kg
(0.4 lb, 1.3 lb, 4.4 lb, 13.2 lb)- Temperature range
122.5 °C, 135.5 °C
(252.5 °F, 275.9 °F)- Sterilization cycle time
Max.: 20 min
Min.: 3 min
- Width
460 mm
(18.11 in)- Height
455 mm
(17.9 in)- Depth
610 mm
(24 in)
Description
Overview

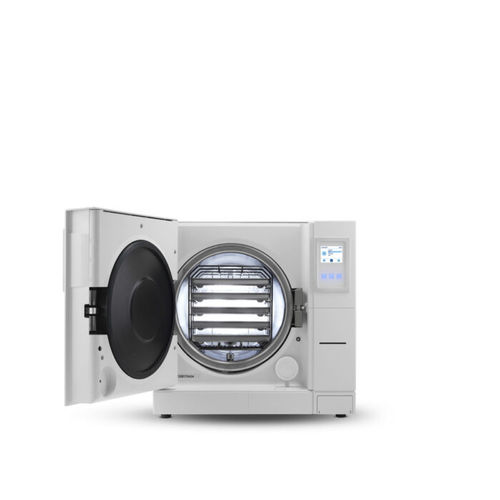

TTA 23 is a compact tabletop autoclave designed for fast, efficient and safe sterilization of solid, porous and hollow instruments, wrapped or unwrapped. The unit is EN 13060 compliant and offers rapid cycles with an optimized internal capacity.
Key functional description
Traceability and connectivity
Management and archiving of sterilization records are supported via both paper and digital systems. An SD card is supplied as standard for data export; Wi‑Fi connectivity is available as an option. A built‑in printer provides immediate local documentation.
Certifications and compliance
Designed to meet European standards including UNI EN 13060, EN ISO 14971, EN 61010‑1/2‑040, EN IEC 61326‑1, EN 62366 and EN 62304. Classified as a medical device under CE0051 in accordance with Regulation (EU) 2017/745 (MDR).
Technical specifications
TTA 23 is a compact tabletop autoclave designed for fast, efficient and safe sterilization of solid, porous and hollow instruments, wrapped or unwrapped. The unit is EN 13060 compliant and offers rapid cycles with an optimized internal capacity.
Key functional description
- Integrated conductivity meter for continuous water quality monitoring to prevent malfunctions from unsuitable water.
- Air‑water separator in the reservoir to protect the vacuum pump and maintain long‑term reliability.
- Built‑in steam generator that adapts water consumption to load, improving cycle speed and reducing water use.
- User‑friendly integrated HMI for programming cycle start, selectable tests (Vacuum, Helix, Bowie & Dick) and maintenance alerts.
- Fully opening upper reservoir for ergonomic access, simplified cleaning and fast maintenance.
Traceability and connectivity
Management and archiving of sterilization records are supported via both paper and digital systems. An SD card is supplied as standard for data export; Wi‑Fi connectivity is available as an option. A built‑in printer provides immediate local documentation.
Certifications and compliance
Designed to meet European standards including UNI EN 13060, EN ISO 14971, EN 61010‑1/2‑040, EN IEC 61326‑1, EN 62366 and EN 62304. Classified as a medical device under CE0051 in accordance with Regulation (EU) 2017/745 (MDR).
Technical specifications
- Commercial denomination: TTA 23 (compact tabletop autoclave)
- Capacity: up to 3 DIN trays
- Overall dimensions (WxDxH): 460 x 610 x 455 mm
- Chamber size: 250 Ø x 440 mm
- Usable chamber space (WxDxH): 180 x 380 x 160 mm
- Programmable tests: Vacuum, Helix, Bowie & Dick
- Water quality control: built‑in conductivity meter
- Vacuum pump protection: air‑water separator in tank
- Steam generator: integrated, load‑adaptive water consumption
- Traceability: SD card standard; built‑in printer; optional Wi‑Fi
- User interface: integrated HMI for cycles, tests and maintenance notifications
