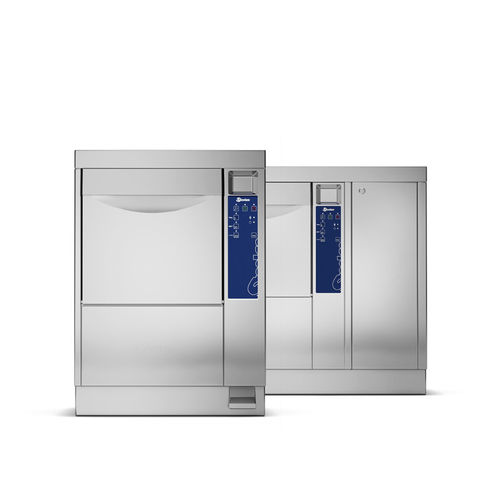

Compact bedpan washer BP 100 series

automatic

Overview
This series of multi-functional bedpan washers (flusher disinfectors) processes common hospital receptacles such as bedpans, urine bottles and suction bottles. Models are offered as free-standing or underbench units, with manual or automatic door operation and several configuration options for clinical workflows.

Hygiene and Washing
Hygiene is optimised through rounded chamber corners and smooth internal door edges that reduce dirt accumulation and bacterial growth and simplify cleaning.

Processing Capacity

• Operational note: capable of treating one urine bottle and one bedpan simultaneously, or up to three urine bottles depending on loading and accessories.
• Feature-panel capacity: with appropriate racks the unit can treat 2 urine bottles and 1 bedpan with lid simultaneously, or up to 4 urine bottles.

Washing Efficiency & Disinfection

• Combined fixed and rotating nozzles deliver targeted water distribution inside and outside treated items to maximise washing performance.
• Self-disinfecting circuit: steam is conveyed through the washing nozzles to ensure disinfection of the washing circuit during each cycle.

User Interface
User-friendly HMI with LCD display and auto-diagnosis; programmable cycles allow process optimisation and traceability in clinical environments.

Installation & Accessories
Underbench models integrate into counters and can include a lockable hinged-door side compartment for chemical and accessory storage. A range of dedicated racks and holders is available to adapt loading configurations.

• Universal holder for simultaneous treatment of different human-waste containers.
• Dedicated racks and holders for specific clinical needs.
• Accessories: counters, emptiers and wall racks for drying and storage to complete the disinfection workflow.

Configurations

• BP 100 M
  Manual door opening and closing.
  Overall dimensions WxDxH: 600 x 600 x 839 mm (23.62 x 23.62 x 33 in).
• BP 100 A
  Automatic door opening and closing via foot pedal.
  Overall dimensions WxDxH: 600 x 600 x 839 mm (23.62 x 23.62 x 33 in).
• BP 100 M9
  Manual door operation. Equipped with lockable hinged-door side compartment for chemicals and/or accessories.
  Overall dimensions WxDxH: 900 x 600 x 839 mm (35.43 x 23.62 x 33 in).
• BP 100 A9
  Automatic door operation via foot pedal. Equipped with lockable hinged-door side compartment for chemicals and/or accessories.
  Overall dimensions WxDxH: 900 x 600 x 839 mm (35.43 x 23.62 x 33 in).

Certifications
Steelco-branded bedpan washers / flusher disinfectors are designed to comply with EN ISO 15883-1/3/5 (performance), EN ISO 14971, EN 61010-1/2-040, EN IEC 61326-1, EN 62366 (safety) and EN 62304 (software). Classified as CE0051 legacy medical devices (Directive 93/42/EEC, MDD).

Applications
Intended for use in patient bedsides, wards and long-term care environments to process bedpans, urine bottles and suction bottles.

Characteristics / technical specifications

• Product type: bedpan washer / flusher disinfector (free-standing or underbench).
• Compatible items: bedpans, urine bottles, suction bottles.
• Processing capacity: one urine bottle + one bedpan simultaneously (or up to 3 urine bottles) — feature-panel examples: 2 urine bottles + 1 bedpan with lid, or up to 4 urine bottles.
• Washing system: fixed and rotating nozzles for internal and external washing.
• Disinfection: steam conveyed through washing nozzles for washing-circuit self-disinfection each cycle.
• Control: LCD HMI with auto-diagnosis and programmable/custom cycles.
• Door operation: manual (M / M9) or automatic via foot pedal (A / A9).
• Side compartment: lockable hinged-door compartment on M9 and A9 models for chemical/accessory storage.
• Dimensions (WxDxH): BP 100 M / A = 600 x 600 x 839 mm; BP 100 M9 / A9 = 900 x 600 x 839 mm.
• Installation: free-standing or underbench; underbench models integrable into counters.
• Accessories: dedicated racks/holders, counters, emptiers, wall racks for drying and storage.
• Standards: EN ISO 15883 series, EN ISO 14971, EN 61010 series, EN IEC 61326-1, EN 62366, EN 62304; CE0051 (MDD).
