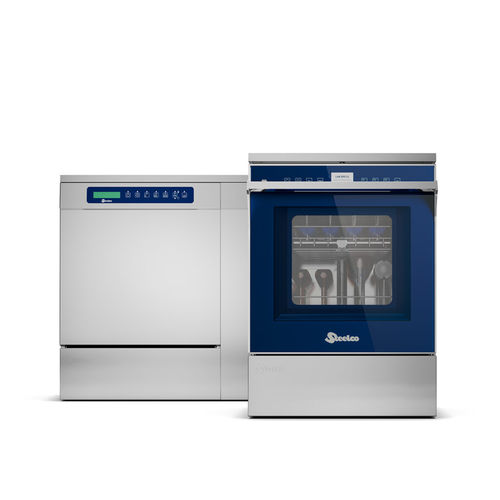

Automatic glassware washer LAB 500 series

laboratorywaterspray

Overview
The LAB 500 Series of compact under-bench glassware washers offers optimal cleaning performance for small and medium-sized laboratories where space is at a premium. LAB 500 next-generation laboratory washers share the washing technology of higher-throughput devices, providing flexibility, excellent cleaning and drying efficacy. Models are capable of injection washing and drying on up to two independent levels. An electronic temperature control system with two independent probes guarantees permanence at 93°C / 199°F ensuring cycle efficiency in terms of performance and duration. The HEPA-H14-filtered forced-air drying system (available on some models) helps achieve complete drying of glassware exterior and interior. Ergonomic telescopic bearing rails enable easy and safe loading and unloading of glassware.

Stands and side cabinets
Different models of 300 mm wide side cabinets allow holding:

• Boiler for DI water preheating (cabinet and washer-disinfector can be manufactured as a single 900 mm wide unit)
• Purification system for DI water supply
• Up to four 5-liter (1.32 Gal US) chemical containers

Stands improve ergonomics when the machine is not installed under the counter. The 600 mm (23.62”) height stands are equipped with doors for easy storage access to chemicals and accessories. A stand is recommended when the machine is equipped with the optional boiler to pre-heat DI water and the needed booster pump.

Wide range of racks, inserts, trays and components
A comprehensive choice of racks and components meets different capacity and cleaning demands, allowing to maximize the number of different utensils and glassware that can be washed, preventing movement and damage, and ensuring complete coverage of the loads.

Easy loading / unloading
The door acts as a loading platform for lower and dual injection wash carts. The upper level has fully extendable telescopic bearing rails allowing easy and safe loading/unloading of the glassware. As standard, the unit is equipped with two rotary spray arms, one at the bottom and one at the top of the chamber. Upper-level racks are also available with a rotating washing arm for washing general-purpose items.

Features

• Hygienic design: Washing chamber, spray arms and tank filters made of AISI 316L stainless steel (DIN 1.4404). Rounded edges to prevent dirt traps. 3-level water filtering system captures residue, preventing re-circulation and extending pump life.
• Optimal cleaning: Powerful washing pump with high flow rate combined with effective spray pressure to optimize water flow and pressure.
• Excellent drying: Built-in HEPA-H14-filtered forced-air drying system ensures complete internal and external drying. Adjustable time and temperature settings optimize cycle duration and energy consumption.
• Chemical dosing: Two standard peristaltic pumps for precise addition of liquid chemical agents. An additional dosing pump is available as an option.
• Steam condenser: Integrated steam condenser prevents vapors from entering the washing area at a set temperature programmable from 0°C to 93°C (32°F – 200°F).
• Traceability: RS232 port for printer connection to monitor and validate washing cycles. USB port for historical cycle data and machine parameters available on LAB 500 SCL / CL / DRS models.

Certifications
Steelco-branded laboratory glassware washers comply with current European directives and standards: 2006/42/EC, 2014/35/EU, 2014/30/EU and 2011/65/EU Directives, EN 61010-1, EN 61010-2-040, EN 61326-1, EN ISO 15883-1 (current standards).

Configurations (summary)
Available configurations include LAB 500 SC, LAB 500 SCL, LAB 500 CL and LAB 500 DRS, differing by door type, display, number of programs, drying system and optional side cabinet. Specific differences and main dimensions are provided in the technical specifications below.

Technical specifications

• Series name: LAB 500 Series
• Application: Compact under-bench glassware washers for small and medium-sized laboratories
• Washing technology: Injection washing; up to two independent levels
• Temperature control: Electronic system with two independent probes; permanence at 93°C / 199°F
• Drying: HEPA-H14-filtered forced-air drying system (available on some models), adjustable time and temperature
• Construction: Washing chamber, spray arms and tank filters in AISI 316L stainless steel (DIN 1.4404); rounded chamber edges
• Water filtration: 3-level filtering system
• Pumps: Powerful washing pump for high flow rate; two standard peristaltic dosing pumps; optional additional dosing pump
• Steam condenser: Integrated, programmable from 0°C to 93°C (32°F – 200°F)
• Traceability / connectivity: RS232 port for printer/PC; USB port for cycle data and program updating (SCL / CL / DRS models)
• Loading: Door acts as loading platform for lower and dual injection wash carts; upper telescopic bearing rails; standard two rotary spray arms; optional rotating upper washing arm
• Typical chamber volume: ~171 L (6.04 cu ft)
• Typical basket volume: ~151 L (5.33 cu ft)
• Overall dimensions (LAB 500 SC / SCL / CL): 600 x 630 x 850 mm (WxDxH) — 23.62 x 24.80 x 33.46 in
• Overall dimensions (LAB 500 DRS): 900 x 630 x 850 mm (WxDxH) — 35.43 x 24.80 x 33.46 in
• LAB 500 SC: Stainless steel door; LED display; 10 programs; RS232 port
• LAB 500 SCL: Stainless steel door; LCD display; 40 programs; RS232 port; USB for cycle data and program updating; full glass door option with soft touch panel (40 programs)
• LAB 500 CL: With forced-hot-air drying on two independent levels; stainless steel or full glass door options; LCD display; 40 programs; RS232; USB
• LAB 500 DRS: Forced-hot-air drying on two independent levels; 300 mm lateral cabinet door for chemical storage and direct access to drying filtering and dosing systems; LCD display; 40 programs; RS232; USB; overall width 900 mm
