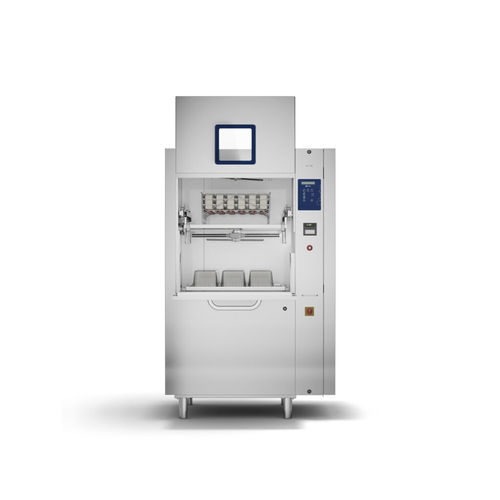

Veterinary washer-disinfector AC 1200

reprocessingbottlefor containers

Overview
AC 1200 is a compact washing unit designed to wash and sanitize vivarium animal-care equipment including cages, feeding bottles and fish tanks. Its compact footprint enables flexible installation and lower operating costs.

Application and general description
Available in single-door or pass-through double-door configurations. Final rinse sanitization is achieved at 85°C via an independent hydraulic circuit. The unit can be electric- or steam-heated and is supplied standard with a double chemical dosing unit; additional dosing systems are available as options. The upper drop-down vertical sliding loading door has a lower section that acts as a loading platform when open to facilitate tray handling. Dedicated accessories optimize loading of cages and washing carts, with injection systems for bottles.

Key features

• Hygienic construction: AISI 316L stainless steel washing chamber and doors; AISI 304 external body for long-term reliability.
• Water and energy saving: recirculation and reuse system for final rinse water to reduce consumption.
• Dosing control: microprocessor-controlled chemical dosing pump; double dosing unit as standard, additional pumps optional.
• Process monitoring: optional flow meters for dosing redundancy and a conductivity sensor for final rinse control.
• Control and programmability: PLC control panel with up to 40 programmable cycles.
• Traceability: RS232 port for printer; USB port for cycle data download and software updates; integrated printer optional.

Optimal cleaning performance
Independent washing and rinsing hydraulic circuits and three-level rotating spray arms (top, middle, bottom) ensure consistent cleaning. Washing water is held in the chamber sump and heated to the selected wash temperature. Final rinse water is pre-heated in an AISI 316L side tank. Temperatures are monitored by probes.

Smart filtering system
Multistage water filtration with a self-cleaning filter for recirculation protects equipment life and maintains hygiene. Independent hydraulic circuits provide an extra level of contamination control.

Aquatic tank processing kit (optional)
Optional kit for reprocessing aquatic tanks used in research: three chemical dosing pumps, upgrade to washing circuit, flow meters and a conductivity probe.

Dimensions and capacity
Chamber volume: ~780 L
Overall dimensions (WxDxH): Single-door: 1200 x 1000 x 1900 mm; Double-door (pass-through): 1245 x 1030 x 1900 mm

Certifications
Certified ISO 9001; Medical division certified ISO 13485.

Technical specifications

• Model: AC 1200
• Application: cabinet/cage and bottle washer for vivarium equipment
• Chamber material: AISI 316L stainless steel
• External body: AISI 304
• Chamber volume: approx. 780 L
• Door options: single-door or pass-through double-door
• Loading: upper drop-down vertical sliding door with lower section as loading platform
• Washing/rinsing: independent hydraulic circuits
• Rinse sanitization temperature: 85°C
• Heating options: electric or steam
• Chemical dosing: 2 dosing units standard; additional pumps optional
• Spray system: three-level rotating spray arms (top/middle/bottom)
• Water treatment: multistage filtration with self-cleaning filter for recirculation
• Pre-heating: AISI 316L pre-heating side tank for final rinse
• Control: PLC with up to 40 programs
• Monitoring & traceability: temperature probes; RS232 and USB ports; integrated printer optional
• Optional process control: flow meters, conductivity probe
