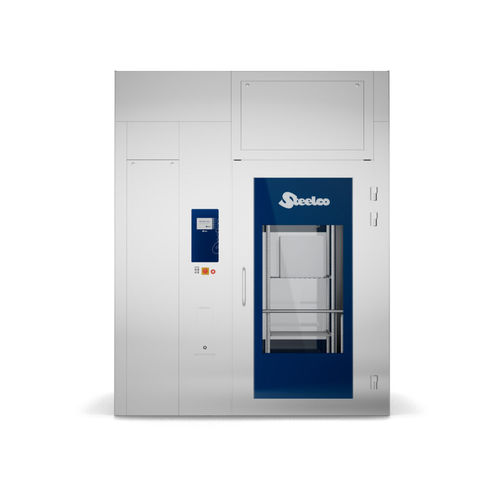

Laboratory decontamination station

stainless steelhydrogen peroxide

General description
The Decontamination Lock is a validated pass-through unit for low-temperature decontamination of heat-sensitive equipment, such as electronic devices, prior to introduction into controlled areas. Available in single-door or double-door pass-through configurations and offered with full-glass doors or stainless-steel doors with glass window. Access doors feature integral inflatable gaskets to ensure chamber tightness during SPF barrier operation and decontamination cycles.

Decontamination process and sterilants
The unit supports vaporized hydrogen peroxide (H2O2) distribution by vaporization/condensation to achieve homogeneous diffusion, including hidden interstices, through micro-condensation on load surfaces. The system can be fitted with an onboard H2O2 vapor generator or connected to compatible external generators. As an alternative sterilant, connection to chlorine dioxide generators is supported. Low-temperature cycles can achieve Sterility Assurance Level (SAL) values down to 10^-6.

Control and automation
Process control is handled by an industrial PLC with a color touch-screen HMI. Features include process monitoring and recording, USB port, e-meter for utilities, load cell for H2O2 bottles, and tablet/connectivity readiness for remote access and diagnostics.

D-PRO — onboard H2O2 generator option
D-PRO is an integrated H2O2 dosing and vapor-generation system designed to share the unit automation. Liquid H2O2 is vaporized thermally and introduced into the chamber after mixing with filtered air. Loading cell for H2O2 container and accessible refilling position are provided.

Aeration and safety
After biodecontamination, a rapid aeration phase injects fresh filtered air to reduce H2O2 concentration below the permitted set point. HEPA filtration (H14 ≥ 99.995% MPPS) is used. Two high-speed aeration options are available:

• Aeration via centralized HVAC system (standard)
• In-line catalyzer to neutralize the sterilant (optional)

Sterilant is reduced to safe levels (<1 ppm) before door gaskets are released and the unloading door may be opened.

Cycle validation
Validation options include:

• Biological indicators (standard 24 h / super rapid 30')
• Incubator for biological indicators (standard and super rapid)
• Chemical process indicator tape Type 1
• Chemical process indicators Type 1 and Type 4

Features and design

• Customization: full-glass or stainless-steel door version with glass window; chamber depth customizable to fit existing pits.
• Hygienic construction: chamber in mirrored-finish AISI 316L stainless steel, resistant to decontamination chemicals.
• Versatility: onboard H2O2 generator option or compatibility with external generators.
• Chamber tightness: access doors with integral inflatable gaskets for barrier integrity.
• Electronic device decontamination: IP67 power socket inside chamber to power devices (e.g., change stations or IVC units) during cycles for internal decontamination.
• User interface: PLC controller, color touch-screen HMI, USB, e-meter for utilities, tablet connectivity.

Certifications
The unit complies with applicable requirements of:

• EN 60204-1:2006 + A1:2010
• EN ISO 12100:2010
• 2006/42/EC (Machinery Directive)
• 2014/35/EU (Low Voltage Directive)
• 2014/30/EU (EMC Directive)

Dimensions

• Door (W x H): 1170 x 2150 mm — 46 x 89 in
• Chamber depth: 2300 mm — 90 in

Characteristics / Specifications

• Model / commercial name: Decontamination Lock
• Configuration: single-door or double-door pass-through
• Door options: full glass door or stainless-steel door with glass window
• Door sealing: integral inflatable gaskets
• On-board generator: optional D-PRO H2O2 dosing and vapor generator or compatibility with external generators
• Alternative sterilant: compatible with chlorine dioxide generators
• Decontamination agent: hydrogen peroxide vapor (H2O2), vaporization/condensation distribution
• SAL achieved: 10^-6
• Ventilation / filtration: HEPA H14 ≥ 99.995% MPPS efficiency
• Aeration options: centralized HVAC (standard) or in-line catalyzer (optional)
• Control: PLC digital controller with color touch-screen HMI; USB port; e-meter
• Chamber material: mirrored-finish stainless steel AISI 316L
• IP rating for device power socket in chamber: IP67
• Usable dimensions: Door (WxH): 1170 x 2150 mm; Chamber depth: 2300 mm
• Cycle validation options: biological indicators (24 h / 30'), incubator, chemical indicators Type 1 and Type 4, tape with Type 1 chemical indicators
