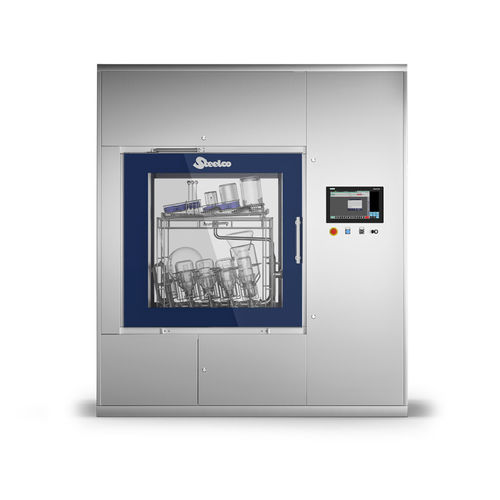

Automatic glassware washer DS Optima

laboratorywaterspray

Overview
The DS Optima is a pre-configured GMP washer with a 1,200 L chamber designed for short lead times. It groups commonly requested features into a ready-to-deploy solution with multiple standard configurations to match typical pharmaceutical and industrial cleaning processes.

Typical loads

• Machine parts
• Filter housings
• Tubing, hoses and fittings
• Valves, pumps, tools and accessories
• Punches and dies
• Glassware
• Drums and carboys

Key features

• Pre-configured GMP platform aiming to reduce order-to-FAT time (ready for FAT in ~3 months for standard configuration).
• Sanitary, fully drainable construction with non-retentive surfaces and ground-flush welds.
• In-house design and manufacture of pharma wash racks; each rack supplied with validation package.
• Efficient drying via regenerative blower with variable speed drive; electric or steam-air heating options; HEPA H14 filtration and low-speed idle to maintain clean drying air and reduce contamination risk.
• Use of non-proprietary, industry-standard components to simplify spare parts sourcing and service worldwide.

Design highlights
Sanitary GMP construction: fully drainable geometry, smooth internal finish in 316L stainless steel, ground-flush welds. Process-contact materials delivered with EN 10204 traceability; elastomers compliant with USP Class VI.

Wash & drying performance
High fluid flow and rotating spray arms on both upper and lower levels provide uniform coverage of loads and chamber to support consistent cleaning and optimized resource use for washing and drying cycles.

Ergonomics & maintenance
Compact footprint with a large 1,200 L chamber. Sliding chemical drawer and integrated electrical cabinet improve ergonomics. Sampling valves are grouped for routine operations, detergent containers located in a sliding drawer, and maintenance access to components is from the loading side; the electrical cabinet slides out for service.

Control system
SCADA with 15" color touch-screen. Available with Siemens or Rockwell PLC. Control software developed following GAMP 5 principles and compliant with 21 CFR Part 11 and EU Annex 11.

Certifications & compliance
Designed and manufactured under an ISO 9001 quality system to meet applicable international pharmaceutical regulations and relevant electrical, EMC and safety requirements.

Dimensions
Chamber volume: 1,200 L
Chamber dimensions (W x D x H): 1,000 x 1,000 x 1,200 mm
Overall dimensions (W x D x H): 2,200 x 1,150 x 2,500 mm

Features / technical specifications

• Model name: DS Optima
• Chamber volume: 1,200 L (43 cu ft)
• Chamber dimensions (W x D x H): 1,000 x 1,000 x 1,200 mm
• Overall dimensions (W x D x H): 2,200 x 1,150 x 2,500 mm
• Compact footprint: approx. 2,200 × 1,150 mm
• Construction material: 316L stainless steel; fully drainable, non-retentive surfaces
• Materials traceability: EN 10204 for process-contact materials
• Elastomers: USP Class VI compliant
• Control: SCADA with 15" color touch-screen; Siemens or Rockwell PLC
• Validation & documentation: supplied with qualification package aligned to configurable pharma systems
• Drying: regenerative blower with VSD, HEPA H14 filtration, electric or steam heating options
• Wash system: rotating spray arms top and bottom with high flow for uniform coverage
• Racks: in-house designed and manufactured pharma wash racks with validation package
• Components: non-proprietary parts for global spare availability
